Panasonic Electronic Components

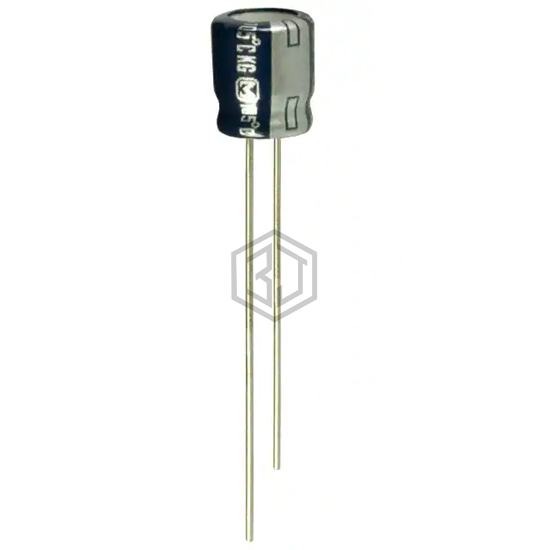

CAP ALUM 22UF 20% 35V RADIAL
ECE-A1VKG220 is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 22UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 9,537
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 121 mA @ 100 kHz |
| Impedance | 2 Ohms |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.276" (7.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
ECE-A1VKG220 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UKT1V220MDD1TD | Nichicon | CAP ALUM 22UF 20% 35V RADIAL | 100% | View |
| SEK220M035ST | Cornell Dubilier Electronics (CDE) | CAP ALUM 22UF 20% 35V RADIAL | 100% | View |
| UEP1V220MED | Nichicon | CAP ALUM 22UF 20% 35V RADIAL | 94% | View |
| UMF1V220MDD1TE | Nichicon | CAP ALUM 22UF 20% 35V RADIAL | 92% | View |
| UPV1V220MFD1TA | Nichicon | CAP ALUM 22UF 20% 35V RADIAL | 86% | View |
| EEA-GA1H220H | Panasonic Electronic Components | CAP ALUM 22UF 20% 50V RADIAL | 82% | View |
Submit your RFQ for ECE-A1VKG220 and get a quote within 24 hours.
