Cornell Dubilier Electronics (CDE)
CAP ALUM 22UF 20% 35V RADIAL

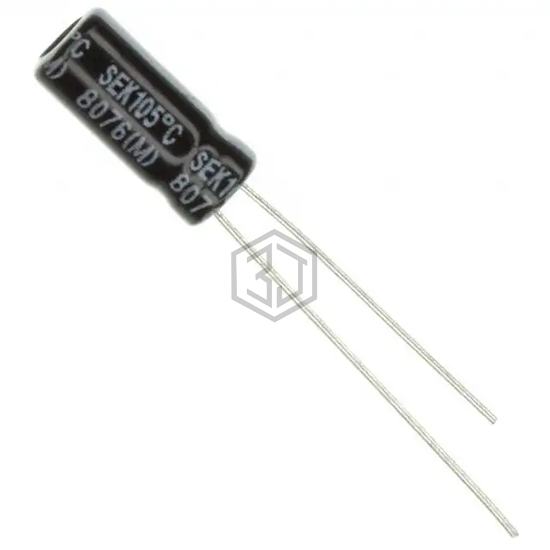

SEK220M035ST is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier Electronics (CDE). CAP ALUM 22UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 1,206
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | 8.44Ohm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 65 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.079" (2.00mm) |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.512" (13.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPV1V220MFD1TA | Nichicon | CAP ALUM 22UF 20% 35V RADIAL | 100% | View |
| ECE-A1VKG220 | Panasonic Electronic Components | CAP ALUM 22UF 20% 35V RADIAL | 100% | View |
| UKT1V220MDD1TD | Nichicon | CAP ALUM 22UF 20% 35V RADIAL | 98% | View |
| UMF1V220MDD1TE | Nichicon | CAP ALUM 22UF 20% 35V RADIAL | 96% | View |
| UEP1V220MED | Nichicon | CAP ALUM 22UF 20% 35V RADIAL | 92% | View |
| EEA-GA1H220H | Panasonic Electronic Components | CAP ALUM 22UF 20% 50V RADIAL | 83% | View |
Submit your RFQ for SEK220M035ST and get a quote within 24 hours.
