Panasonic Electronic Components

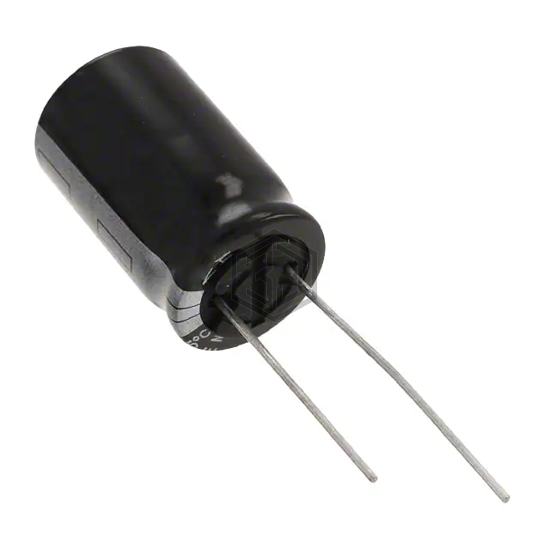

CAP ALUM 22UF 20% 450V RADIAL
ECA-2WHG220B is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 22UF 20% 450V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can.
In Stock: 3,155
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 115 mA @ 120 Hz |
| Ripple Current @ High Frequency | 172.5 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| SEK220M160ST | Cornell Dubilier Electronics (CDE) | CAP ALUM 22UF 20% 160V RADIAL | 72% | View |
| B43866C2226M | EPCOS - TDK Electronics | CAP ALUM 22UF 20% 250V RADIAL | 64% | View |
| EEU-ED2G220 | Panasonic Electronic Components | CAP ALUM 22UF 20% 400V RADIAL | 58% | View |
| MAL211828229E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22UF 20% 63V AXIAL | 58% | View |
| 200YXF22MEFCT810X20 | Rubycon | CAP ALUM 22UF 20% 200V RADIAL | 57% | View |
| ESH226M016AC3DA | KEMET | CAP ALUM 22UF 20% 16V RADIAL | 56% | View |
