Panasonic Electronic Components

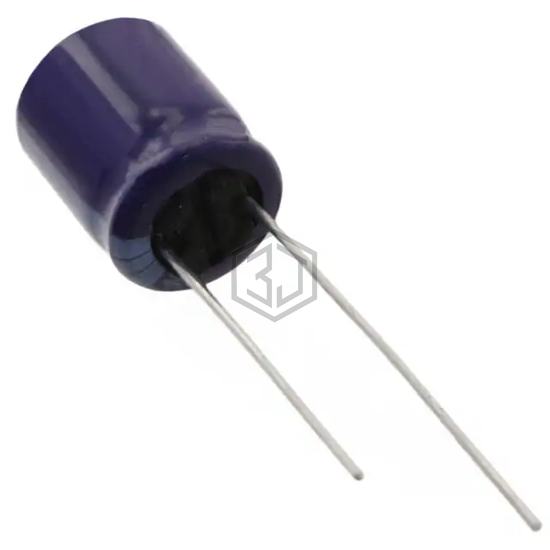

CAP ALUM 22UF 20% 160V RADIAL
ECA-2CM220B is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 22UF 20% 160V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 85°C, voltage - rated 160 V, package / case Radial, Can.
In Stock: 1,450
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 160 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 175 mA @ 120 Hz |
| Ripple Current @ High Frequency | 297.5 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.669" (17.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 226CKR050M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 22UF 20% 50V RADIAL | 64% | View |
| URS2G220MHD6TN | Nichicon | CAP ALUM 22UF 20% 400V RADIAL | 58% | View |
| UVZ2W220MHH | Nichicon | CAP ALUM 22UF 20% 450V RADIAL | 57% | View |
| 226TTA500AQW | Cornell Dubilier / Illinois Capacitor | CAP ALUM 22UF 20% 500V AXIAL | 56% | View |
| 16ZLG22MEFC5X7 | Rubycon | CAP ALUM 22UF 20% 16V RADIAL | 51% | View |
| 226SAK050M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 22UF 20% 50V RADIAL | 51% | View |
Submit your RFQ for ECA-2CM220B and get a quote within 24 hours.
