Cornell Dubilier / Illinois Capacitor
CAP ALUM 22UF 20% 50V RADIAL

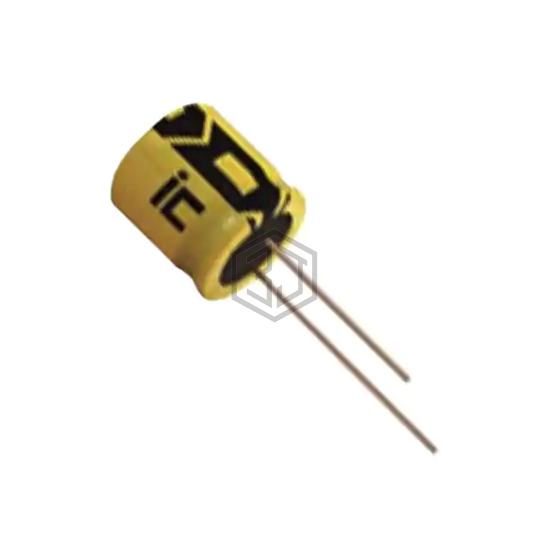

226SAK050M is a Aluminum Electrolytic Capacitors manufactured by Cornell Dubilier / Illinois Capacitor. CAP ALUM 22UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 2,316
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | 9.043Ohm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 90 mA @ 120 Hz |
| Ripple Current @ High Frequency | 180 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.079" (2.00mm) |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UFW1J220MDD1TA | Nichicon | CAP ALUM 22UF 20% 63V RADIAL | 88% | View |
| UKT1H220MDD | Nichicon | CAP ALUM 22UF 20% 50V RADIAL | 87% | View |
| 226CKR050M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 22UF 20% 50V RADIAL | 87% | View |
| B41821A8226M | EPCOS - TDK Electronics | CAP ALUM 22UF 20% 63V RADIAL | 87% | View |
| KMG35VB22RM5X11LL | United Chemi-Con | CAP ALUM 22UF 20% 35V RADIAL | 77% | View |
| ECE-A1CN220UB | Panasonic Electronic Components | CAP ALUM 22UF 20% 16V RADIAL | 56% | View |
