Panasonic Electronic Components

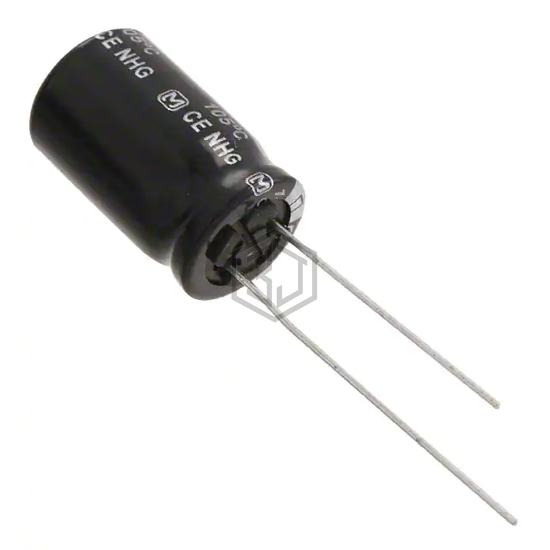

CAP ALUM 2200UF 20% 16V RADIAL
ECA-1CHG222B is a Aluminum Electrolytic Capacitors manufactured by Panasonic Electronic Components. CAP ALUM 2200UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 9,383
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 2200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 920 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.058 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL216055222E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 20% 16V RADIAL | 97% | View |
| MAL213695225E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 20% 16V RADIAL | 90% | View |
| B41858A4228M | EPCOS - TDK Electronics | CAP ALUM 2200UF 20% 16V RADIAL | 83% | View |
| URY1E222MRD | Nichicon | CAP ALUM 2200UF 20% 25V RADIAL | 75% | View |
| EY1C222MP51023F6 | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 70% | View |
| RXW222M0JBK-1025S | Surge | CAP ALUM 6.3V POLAR | 69% | View |
Submit your RFQ for ECA-1CHG222B and get a quote within 24 hours.
