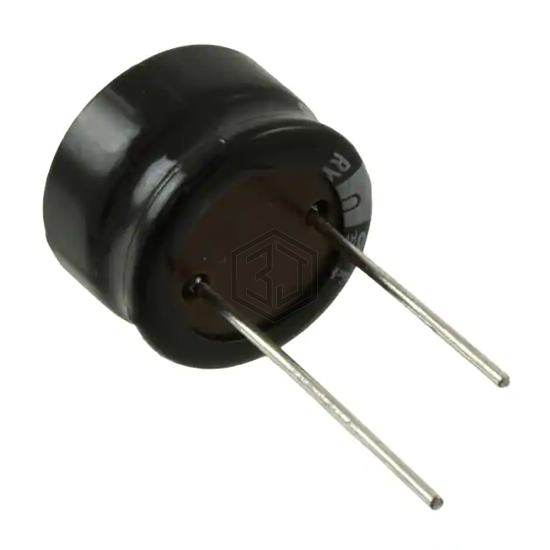

CAP ALUM 2200UF 20% 25V RADIAL
URY1E222MRD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 2200UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 2,731
| Attribute | Value |
|---|---|
| Product Status | Last Time Buy |
| Capacitance | 2200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | - |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.17 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.3455 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.492" (12.50mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 0.571" (14.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
URY1E222MRD is Last Time Buy. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL211916222E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 25V AXIAL | 91% | View |
| EEU-FK1E222SB | Panasonic Electronic Components | CAP ALUM 2200UF 20% 25V RAD TH | 76% | View |
| MAL216055222E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 20% 16V RADIAL | 71% | View |
| EEU-FK1V222SB | Panasonic Electronic Components | CAP ALUM 2200UF 20% 35V RAD TH | 59% | View |
| EEU-FC1V222SB | Panasonic Electronic Components | CAP ALUM 2200UF 20% 35V RADIAL | 58% | View |
| UPA1V222MHD6 | Nichicon | CAP ALUM 2200UF 20% 35V RADIAL | 58% | View |
Submit your RFQ for URY1E222MRD and get a quote within 24 hours.
