Panasonic Electronic Components

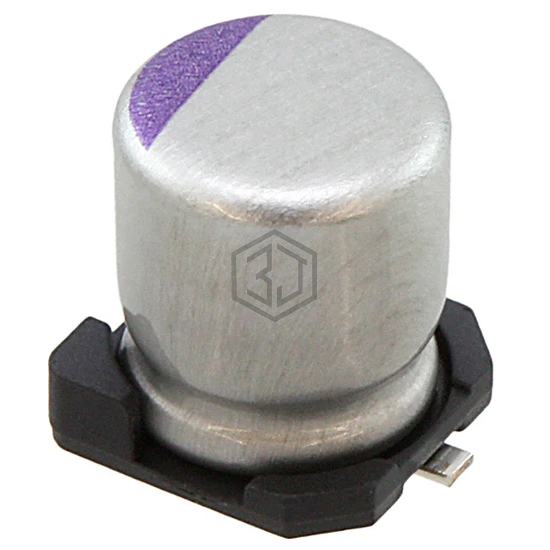

CAP ALUM POLY 68UF 20% 4V SMD
4SVP68M is a Aluminum - Polymer Capacitors manufactured by Panasonic Electronic Components. CAP ALUM POLY 68UF 20% 4V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 4 V, package / case Radial, Can - SMD.
In Stock: 4,393
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 68 µF |
| Tolerance | ±20% |
| Voltage - Rated | 4 V |
| ESR (Equivalent Series Resistance) | 60mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | 70 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.4 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.236" (6.00mm) |
| Surface Mount Land Size | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 875105242008 | Würth Elektronik | CAP ALUM POLY 68UF 20% 10V SMD | 63% | View |
| PCS1A680MCL1GS | Nichicon | CAP ALUM POLY 68UF 20% 10V SMD | 58% | View |
| MAL218497514E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM POLY 68UF 20% 16V SMD | 57% | View |
| A766EB686M1ALAE030 | KEMET | CAP ALUM POLY 68UF 20% 10V SMD | 57% | View |
| APXS160ARA680MF61G | United Chemi-Con | CAP ALUM POLY 68UF 20% 16V SMD | 57% | View |
| MAL218597552E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM POLY 68UF 20% 20V SMD | 55% | View |
Submit your RFQ for 4SVP68M and get a quote within 24 hours.
