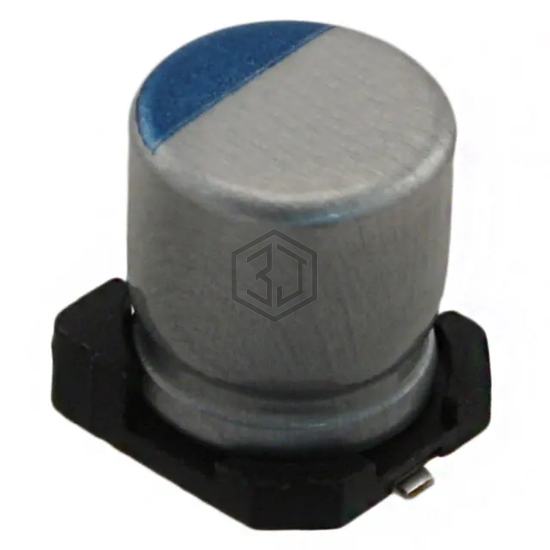

CAP ALUM POLY 68UF 20% 10V SMD
PCS1A680MCL1GS is a Aluminum - Polymer Capacitors manufactured by Nichicon. CAP ALUM POLY 68UF 20% 10V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can - SMD.
In Stock: 7,851
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 68 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | 30mOhm |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 2.1 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.236" (6.00mm) |
| Surface Mount Land Size | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| A766EB686M1ALAE030 | KEMET | CAP ALUM POLY 68UF 20% 10V SMD | 98% | View |
| PCJ1A680MCL1GS | Nichicon | CAP ALUM POLY 68UF 20% 10V SMD | 97% | View |
| MAL218497514E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM POLY 68UF 20% 16V SMD | 79% | View |
| APXS160ARA680MF61G | United Chemi-Con | CAP ALUM POLY 68UF 20% 16V SMD | 79% | View |
| MAL218097503E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM POLY 68UF 20% 16V SMD | 76% | View |
| PCR1J680MCL1GS | Nichicon | CAP ALUM POLY 68UF 20% 63V SMD | 62% | View |
Submit your RFQ for PCS1A680MCL1GS and get a quote within 24 hours.
