Cornell Dubilier / Illinois Capacitor
CAP ALUM POLY 82UF 20% 50V T/H

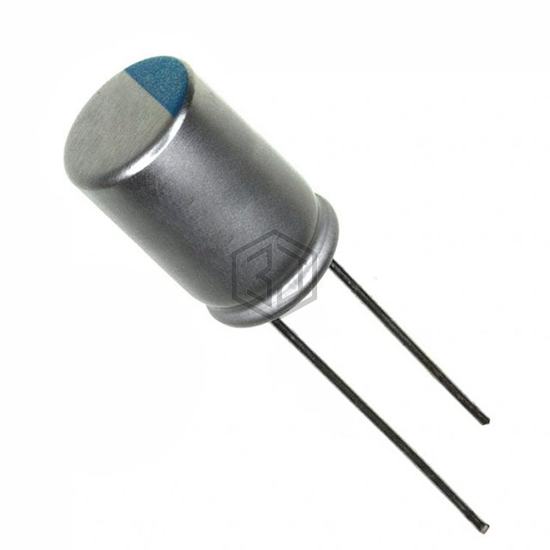

826ALG050MFBJ is a Aluminum - Polymer Capacitors manufactured by Cornell Dubilier / Illinois Capacitor. CAP ALUM POLY 82UF 20% 50V T/H. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 8,882
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 82 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | 27mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 125°C |
| Ratings | - |
| Applications | Automotive |
| Features | - |
| Ripple Current @ Low Frequency | 135 mA @ 120 Hz |
| Ripple Current @ High Frequency | 2.7 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.532" (13.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 826AVG050MFBJ | Cornell Dubilier / Illinois Capacitor | CAP ALUM POLY 82UF 20% 50V T/H | 91% | View |
| 826ALG063MGBJ | Cornell Dubilier / Illinois Capacitor | CAP ALUM POLY 82UF 20% 63V T/H | 90% | View |
| 63SXE100M | Panasonic Electronic Components | CAP ALUM POLY 100UF 20% 63V T/H | 76% | View |
| 16SEQP82M | Panasonic Electronic Components | CAP ALUM POLY 82UF 20% 16V T/H | 67% | View |
| PLX1E820MCL1 | Nichicon | CAP ALUM POLY 82UF 20% 25V T/H | 62% | View |
| PLX1E820MCL1TD | Nichicon | CAP ALUM POLY 82UF 20% 25V T/H | 62% | View |
Submit your RFQ for 826ALG050MFBJ and get a quote within 24 hours.
