Panasonic Electronic Components
CAP ALUM POLY 3.3UF 20% 16V SMD

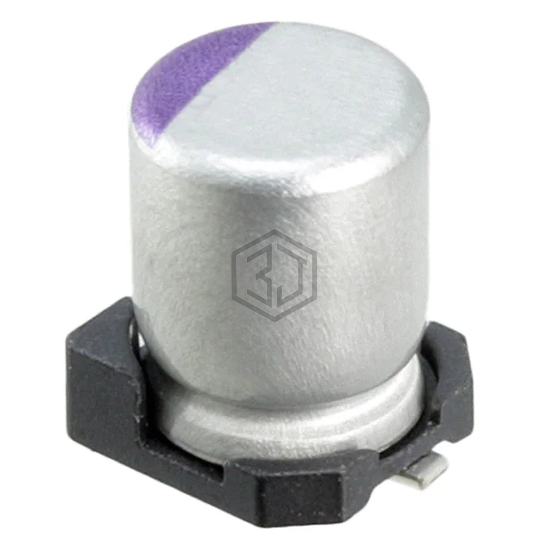

16SVP3R3M is a Aluminum - Polymer Capacitors manufactured by Panasonic Electronic Components. CAP ALUM POLY 3.3UF 20% 16V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can - SMD.
In Stock: 965
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 3.3 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 260mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | 33 mA @ 120 Hz |
| Ripple Current @ High Frequency | 660 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.157" Dia (4.00mm) |
| Height - Seated (Max) | 0.217" (5.50mm) |
| Surface Mount Land Size | 0.169" L x 0.169" W (4.30mm x 4.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| PCF1C3R3MCL1GB | Nichicon | CAP ALUM POLY 3.3UF 20% 16V SMD | 100% | View |
| APXA160ARA3R3MD55G | United Chemi-Con | CAP ALUM POLY 3.3UF 20% 16V SMD | 100% | View |
| 94SVP335X0016A5 | Vishay Sprague | CAP ALUM POLY 3.3UF 20% 16V SMD | 96% | View |
| 10SVP4R7M | Panasonic Electronic Components | CAP ALUM POLY 4.7UF 20% 10V SMD | 72% | View |
| 94SVP475X0010A5 | Vishay Sprague | CAP ALUM POLY 4.7UF 20% 10V SMD | 62% | View |
| 875105844001 | Würth Elektronik | CAP ALUM POLY 5.6UF 20% 63V SMD | 56% | View |
Submit your RFQ for 16SVP3R3M and get a quote within 24 hours.
