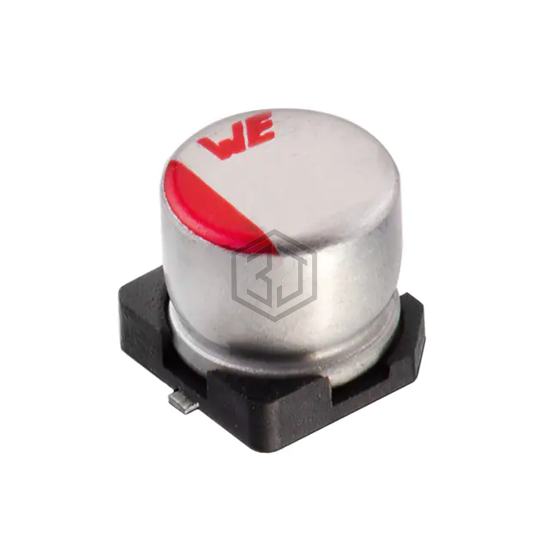

CAP ALUM POLY 5.6UF 20% 63V SMD
875105844001 is a Aluminum - Polymer Capacitors manufactured by Würth Elektronik. CAP ALUM POLY 5.6UF 20% 63V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can - SMD.
In Stock: 7,534
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 5.6 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | 100mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | 35 mA @ 120 Hz |
| Ripple Current @ High Frequency | 700 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.240" (6.10mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL218497801E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM POLY 5.6UF 20% 63V SMD | 100% | View |
| PCV1J5R6MCL1GS | Nichicon | CAP ALUM POLY 5.6UF 20% 63V SMD | 100% | View |
| PCX1H5R6MCL1GS | Nichicon | CAP ALUM POLY 5.6UF 20% 50V SMD | 90% | View |
| 10SVP4R7M | Panasonic Electronic Components | CAP ALUM POLY 4.7UF 20% 10V SMD | 70% | View |
| 94SVP475X0010A5 | Vishay Sprague | CAP ALUM POLY 4.7UF 20% 10V SMD | 60% | View |
| 875105945001 | Würth Elektronik | CAP ALUM POLY 4.7UF 20% 100V SMD | 59% | View |
