Panasonic Electronic Components
CAP ALUM POLY 560UF 20% 16V T/H

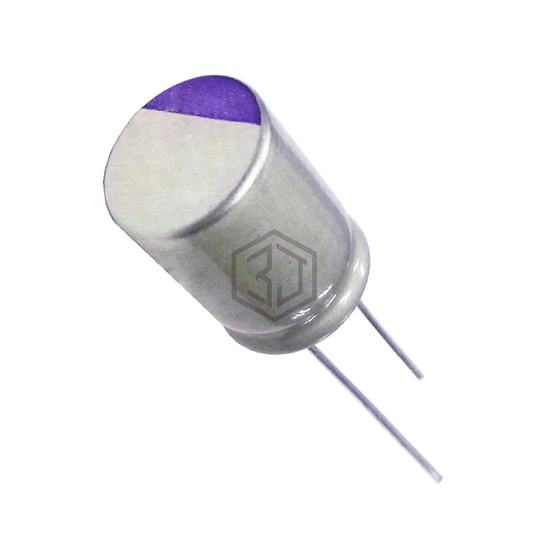

16SEPG560M is a Aluminum - Polymer Capacitors manufactured by Panasonic Electronic Components. CAP ALUM POLY 560UF 20% 16V T/H. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 7,883
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 8mOhm |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | 305 mA @ 120 Hz |
| Ripple Current @ High Frequency | 6.1 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.512" (13.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 870135174003 | Würth Elektronik | CAP ALUM POLY 560UF 20% 6.3V T/H | 79% | View |
| 10SEP560M+T | Panasonic Electronic Components | CAP ALUM POLY 560UF 20% 10V T/H | 78% | View |
| 6SEPC560MW | Panasonic Electronic Components | CAP ALUM POLY 560UF 20% 6.3V T/H | 75% | View |
| UPS0J561MNN0808U | Chinsan (Elite) | CONDUCTIVE POLYMER SOLID CAPACIT | 69% | View |
| RHT1A561MDN1PH | Nichicon | CAP ALUM POLY 560UF 20% 10V T/H | 69% | View |
| A750KK567M1AAAE016 | KEMET | CAP ALUM POLY 560UF 20% 10V T/H | 67% | View |
