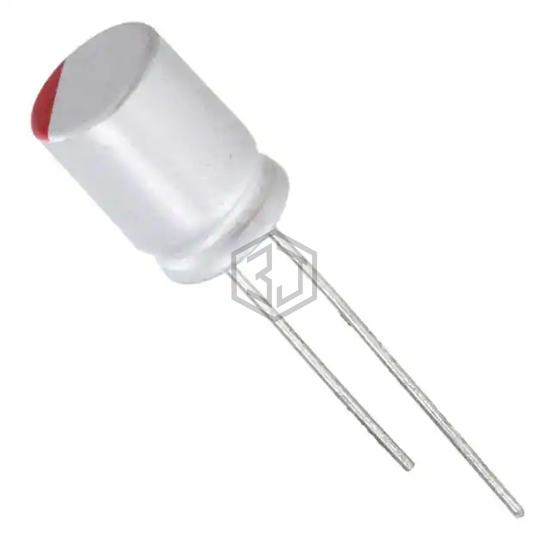

CAP ALUM POLY 560UF 20% 10V T/H
RHT1A561MDN1PH is a Aluminum - Polymer Capacitors manufactured by Nichicon. CAP ALUM POLY 560UF 20% 10V T/H. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 8,653
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | 13mOhm |
| Lifetime @ Temp. | 1000 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 125°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | 525 mA @ 120 Hz |
| Ripple Current @ High Frequency | 5.25 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.551" (14.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| URH1A561MNN1012U | Chinsan (Elite) | CONDUCTIVE POLYMER SOLID CAPACIT | 100% | View |
| RHT1A561MDN1 | Nichicon | CAP ALUM POLY 560UF 20% 10V T/H | 100% | View |
| 10SEQP560M | Panasonic Electronic Components | CAP ALUM POLY 560UF 20% 10V T/H | 83% | View |
| RHT0J681MDN1PH | Nichicon | CAP ALUM POLY 680UF 20% 6.3V T/H | 77% | View |
| RHT0J681MDN1 | Nichicon | CAP ALUM POLY 680UF 20% 6.3V T/H | 77% | View |
| 870135174003 | Würth Elektronik | CAP ALUM POLY 560UF 20% 6.3V T/H | 69% | View |
Submit your RFQ for RHT1A561MDN1PH and get a quote within 24 hours.
