Panasonic Electronic Components

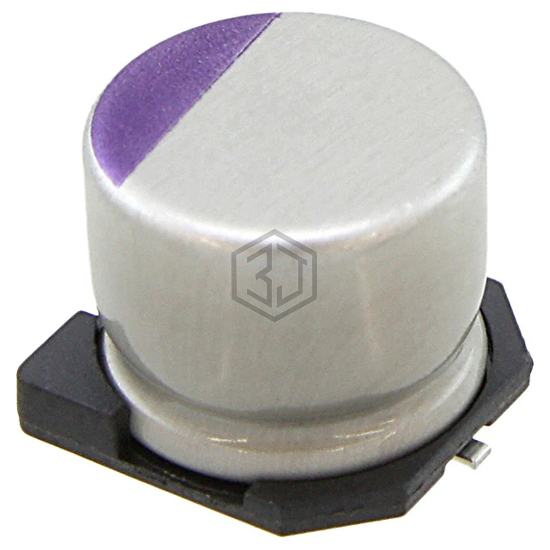

CAP ALUM POLY 270UF 20% 10V SMD
10SVPC270M is a Aluminum - Polymer Capacitors manufactured by Panasonic Electronic Components. CAP ALUM POLY 270UF 20% 10V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can - SMD.
In Stock: 2,401
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 270 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | 22mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | 161 mA @ 120 Hz |
| Ripple Current @ High Frequency | 3.22 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.276" (7.00mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL218197406E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM POLY 270UF 20% 10V SMD | 100% | View |
| PCJ1A271MCL1GS | Nichicon | CAP ALUM POLY 270UF 20% 10V SMD | 100% | View |
| VSG1C271MCB8067 | Chinsan (Elite) | CONDUCTIVE POLYMER SOLID CAPACIT | 80% | View |
| 4SVPA270MAA | Panasonic Electronic Components | CAP ALUM POLY 270UF 20% 4V SMD | 79% | View |
| APD0811271M035R | KYOCERA AVX | CAP ALUM POLY 270UF 20% 35V SMD | 69% | View |
| RSA0J271MCN1GS | Nichicon | CAP ALUM POLY 270UF 20% 6.3V SMD | 69% | View |
Submit your RFQ for 10SVPC270M and get a quote within 24 hours.
