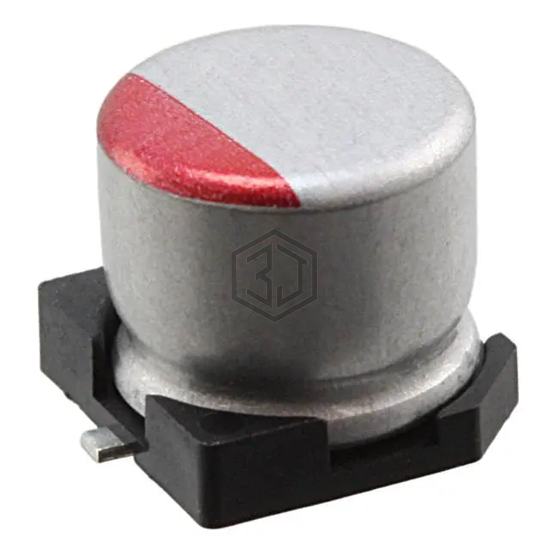

CAP ALUM POLY 270UF 20% 6.3V SMD
RSA0J271MCN1GS is a Aluminum - Polymer Capacitors manufactured by Nichicon. CAP ALUM POLY 270UF 20% 6.3V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can - SMD.
In Stock: 8,803
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 270 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | 14mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | 316 mA @ 120 Hz |
| Ripple Current @ High Frequency | 3.16 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.236" (6.00mm) |
| Surface Mount Land Size | 0.256" L x 0.256" W (6.50mm x 6.50mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| APXF100ARA271MF61G | United Chemi-Con | CAP ALUM POLY 270UF 20% 10V SMD | 77% | View |
| VSG1C271MCB8067 | Chinsan (Elite) | CONDUCTIVE POLYMER SOLID CAPACIT | 70% | View |
| MAL218597403E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM POLY 270UF 20% 10V SMD | 69% | View |
| 10SVPC270M | Panasonic Electronic Components | CAP ALUM POLY 270UF 20% 10V SMD | 69% | View |
| PCV1E271MCL2GS | Nichicon | CAP ALUM POLY 270UF 20% 25V SMD | 66% | View |
| 2R5SVPE270M | Panasonic Electronic Components | CAP ALUM POLY 270UF 20% 2.5V SMD | 62% | View |
