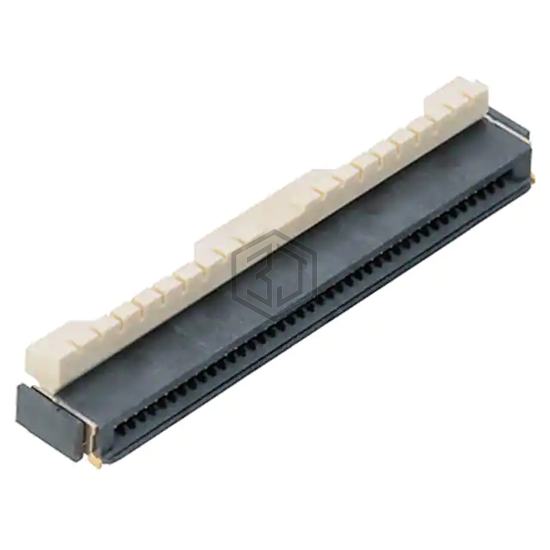

CONN FFC FPC 40POS .5MM SMT
AYF564035A is a FFC, FPC (Flat Flexible) Connectors manufactured by Panasonic Electric Works. CONN FFC FPC 40POS .5MM SMT. Key specifications: mounting type Surface Mount, Right Angle, operating temperature -55°C ~ 85°C, voltage rating 50V, housing material Liquid Crystal Polymer (LCP).
In Stock: 487
| Attribute | Value |
|---|---|
| Product Status | Active |
| Flat Flex Type | FFC, FPC |
| Mounting Type | Surface Mount, Right Angle |
| Connector/Contact Type | Contacts, Top and Bottom |
| Number of Positions | 40 |
| Pitch | 0.020" (0.50mm) |
| Termination | Solder |
| FFC, FCB Thickness | 0.30mm |
| Height Above Board | 0.071" (1.80mm) |
| Locking Feature | Flip Lock, Backlock |
| Cable End Type | Tapered |
| Contact Material | Copper Alloy |
| Contact Finish | Gold |
| Housing Material | Liquid Crystal Polymer (LCP) |
| Actuator Material | Liquid Crystal Polymer (LCP) |
| Features | - |
| Voltage Rating | 50V |
| Operating Temperature | -55°C ~ 85°C |
| Material Flammability Rating | UL94 V-0 |
Submit your RFQ for AYF564035A and get a quote within 24 hours.
