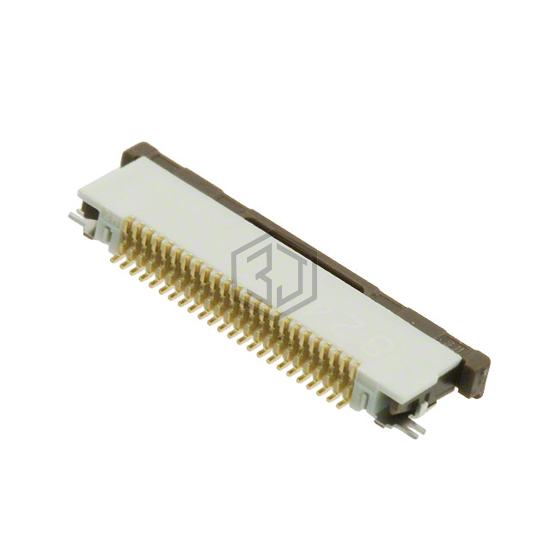

CONN FPC BOTTOM 24POS 0.50MM R/A
AYF512415 is a FFC, FPC (Flat Flexible) Connectors manufactured by Panasonic Electric Works. CONN FPC BOTTOM 24POS 0.50MM R/A. Key specifications: mounting type Surface Mount, Right Angle, operating temperature -55°C ~ 85°C, voltage rating 50V, housing material Polyamide (PA), Nylon.
In Stock: 48
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Flat Flex Type | FPC |
| Mounting Type | Surface Mount, Right Angle |
| Connector/Contact Type | Contacts, Bottom |
| Number of Positions | 24 |
| Pitch | 0.020" (0.50mm) |
| Termination | Solder |
| FFC, FCB Thickness | 0.30mm |
| Height Above Board | 0.075" (1.90mm) |
| Locking Feature | Slide Lock |
| Cable End Type | Tapered |
| Contact Material | Copper Alloy |
| Contact Finish | Gold |
| Housing Material | Polyamide (PA), Nylon |
| Actuator Material | Polyphenylene Sulfide (PPS) |
| Features | Solder Retention |
| Voltage Rating | 50V |
| Operating Temperature | -55°C ~ 85°C |
| Material Flammability Rating | - |
Submit your RFQ for AYF512415 and get a quote within 24 hours.
