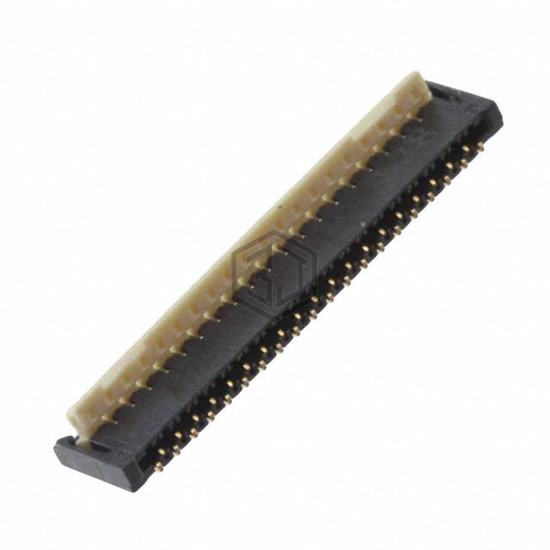

CONN FPC 37POS 0.30MM R/A
AYF333735A is a FFC, FPC (Flat Flexible) Connectors manufactured by Panasonic Electric Works. CONN FPC 37POS 0.30MM R/A. Key specifications: mounting type Surface Mount, Right Angle, operating temperature -55°C ~ 85°C, voltage rating 50V, housing material Liquid Crystal Polymer (LCP).
In Stock: 373
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Flat Flex Type | FPC |
| Mounting Type | Surface Mount, Right Angle |
| Connector/Contact Type | Contacts, Top and Bottom |
| Number of Positions | 37 |
| Pitch | 0.012" (0.30mm) |
| Termination | Solder |
| FFC, FCB Thickness | 0.20mm |
| Height Above Board | 0.035" (0.88mm) |
| Locking Feature | Flip Lock, Backlock |
| Cable End Type | Tapered |
| Contact Material | Copper Alloy |
| Contact Finish | Gold |
| Housing Material | Liquid Crystal Polymer (LCP) |
| Actuator Material | Liquid Crystal Polymer (LCP) |
| Features | - |
| Voltage Rating | 50V |
| Operating Temperature | -55°C ~ 85°C |
| Material Flammability Rating | UL94 V-0 |
