FFC/FPC CONNECTORY, 24 PIN, SMD,

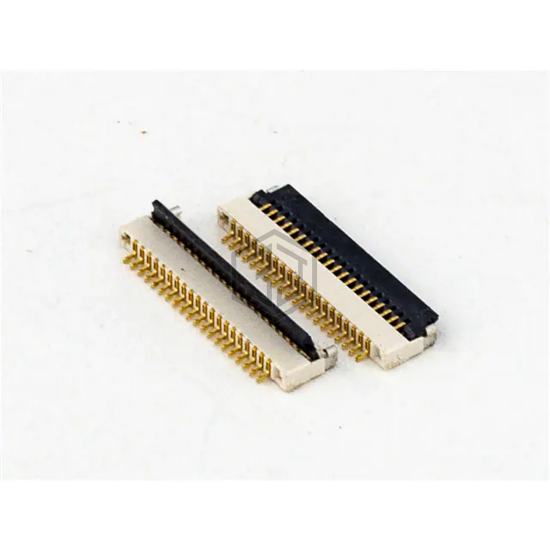

2538-B24G00DBT is a FFC, FPC (Flat Flexible) Connectors manufactured by Oupiin. FFC/FPC CONNECTORY, 24 PIN, SMD,. Key specifications: mounting type Surface Mount, Right Angle, operating temperature -55°C ~ 105°C, housing material Liquid Crystal Polymer (LCP), termination Solder.
In Stock: 105
| Attribute | Value |
|---|---|
| Product Status | Active |
| Flat Flex Type | FFC, FPC |
| Mounting Type | Surface Mount, Right Angle |
| Connector/Contact Type | Contacts, Top and Bottom |
| Number of Positions | 24 |
| Pitch | 0.020" (0.50mm) |
| Termination | Solder |
| FFC, FCB Thickness | 0.30mm |
| Height Above Board | 0.039" (1.00mm) |
| Locking Feature | Flip Lock, Backlock |
| Cable End Type | Tapered |
| Contact Material | Phosphor Bronze |
| Contact Finish | Gold |
| Housing Material | Liquid Crystal Polymer (LCP) |
| Actuator Material | Liquid Crystal Polymer (LCP) |
| Features | Solder Retention |
| Voltage Rating | - |
| Operating Temperature | -55°C ~ 105°C |
| Material Flammability Rating | UL94 V-0 |
Submit your RFQ for 2538-B24G00DBT and get a quote within 24 hours.
