FFC/FPC CONNECTOR, 9 PIN, TIN PL

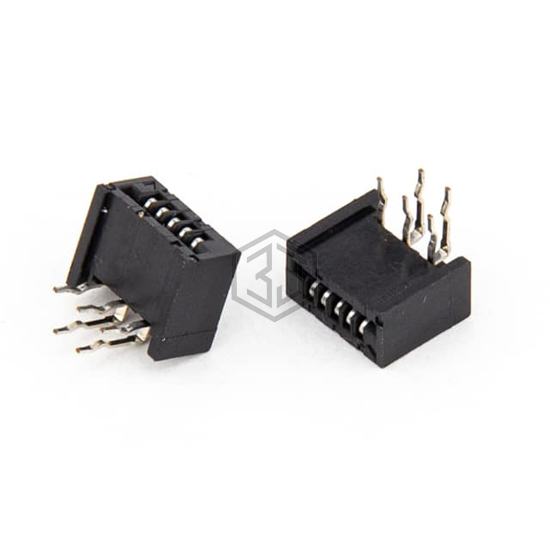

2532-09TRA is a FFC, FPC (Flat Flexible) Connectors manufactured by Oupiin. FFC/FPC CONNECTOR, 9 PIN, TIN PL. Key specifications: mounting type Through Hole, Right Angle, operating temperature -55°C ~ 105°C, housing material Polybutylene Terephthalate (PBT), Glass Filled, termination Kinked Pin.
In Stock: 192
| Attribute | Value |
|---|---|
| Product Status | Active |
| Flat Flex Type | FFC, FPC |
| Mounting Type | Through Hole, Right Angle |
| Connector/Contact Type | Contacts, Top |
| Number of Positions | 9 |
| Pitch | 0.049" (1.25mm) |
| Termination | Kinked Pin |
| FFC, FCB Thickness | 0.30mm |
| Height Above Board | 0.197" (5.00mm) |
| Locking Feature | - |
| Cable End Type | Straight |
| Contact Material | Phosphor Bronze |
| Contact Finish | Tin |
| Housing Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Actuator Material | - |
| Features | - |
| Voltage Rating | - |
| Operating Temperature | -55°C ~ 105°C |
| Material Flammability Rating | UL94 V-0 |
Submit your RFQ for 2532-09TRA and get a quote within 24 hours.
