FFC/FPC SOCKET, .5MM PITCH, 50 P

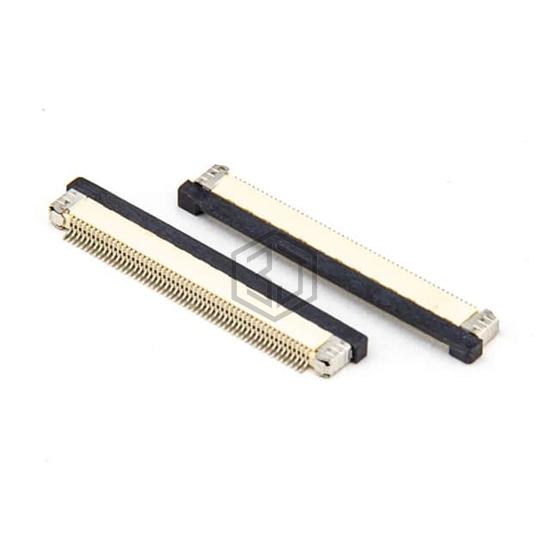

2345-C50TD2T is a FFC, FPC (Flat Flexible) Connectors manufactured by Oupiin. FFC/FPC SOCKET, .5MM PITCH, 50 P. Key specifications: mounting type Surface Mount, Right Angle, operating temperature -45°C ~ 85°C, voltage rating 50V, housing material Liquid Crystal Polymer (LCP).
In Stock: 6,782
| Attribute | Value |
|---|---|
| Product Status | Active |
| Flat Flex Type | FFC, FPC |
| Mounting Type | Surface Mount, Right Angle |
| Connector/Contact Type | Contacts, Bottom |
| Number of Positions | 50 |
| Pitch | 0.020" (0.50mm) |
| Termination | Solder |
| FFC, FCB Thickness | 0.30mm |
| Height Above Board | 0.079" (2.00mm) |
| Locking Feature | Slide Lock |
| Cable End Type | Straight |
| Contact Material | Phosphor Bronze |
| Contact Finish | Tin |
| Housing Material | Liquid Crystal Polymer (LCP) |
| Actuator Material | Liquid Crystal Polymer (LCP) |
| Features | Solder Retention, Zero Insertion Force (ZIF) |
| Voltage Rating | 50V |
| Operating Temperature | -45°C ~ 85°C |
| Material Flammability Rating | UL94 V-0 |
Submit your RFQ for 2345-C50TD2T and get a quote within 24 hours.
