FFC/FPC CONNECTOR, NON-ZIF TYPE,

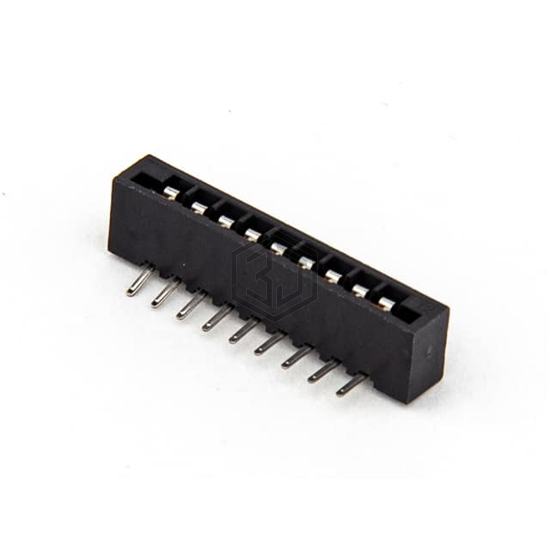

2032-11TRU is a FFC, FPC (Flat Flexible) Connectors manufactured by Oupiin. FFC/FPC CONNECTOR, NON-ZIF TYPE,. Key specifications: mounting type Through Hole, Right Angle, operating temperature -25°C ~ 85°C, voltage rating 250V, housing material Polybutylene Terephthalate (PBT).
In Stock: 117
| Attribute | Value |
|---|---|
| Product Status | Active |
| Flat Flex Type | FFC, FPC |
| Mounting Type | Through Hole, Right Angle |
| Connector/Contact Type | - |
| Number of Positions | 11 |
| Pitch | 0.100" (2.54mm) |
| Termination | Solder |
| FFC, FCB Thickness | 0.30mm |
| Height Above Board | 0.179" (4.55mm) |
| Locking Feature | - |
| Cable End Type | Straight |
| Contact Material | Phosphor Bronze |
| Contact Finish | Tin |
| Housing Material | Polybutylene Terephthalate (PBT) |
| Actuator Material | - |
| Features | - |
| Voltage Rating | 250V |
| Operating Temperature | -25°C ~ 85°C |
| Material Flammability Rating | UL94 V-0 |
