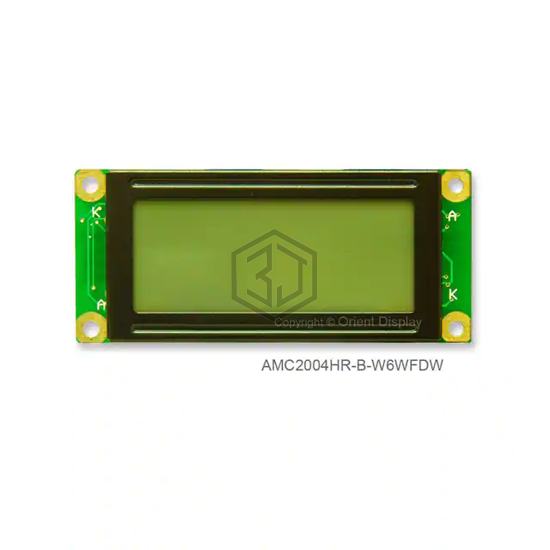

Orient Display - duplicate use 3444
20X4 CHARACTER FSTN POSITIVE
AMC2004HR-B-W6WFDW is a Display Modules - LCD, OLED Character and Numeric manufactured by Orient Display - duplicate use 3444. 20X4 CHARACTER FSTN POSITIVE. Key specifications: operating temperature -20°C ~ 70°C, voltage - supply 5V, interface Parallel, display type FSTN - Film Super-Twisted Nematic.
In Stock: 135
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Characters | 40 |
| Display Format | 20 x 4 |
| Character Format | 5 x 8 Dots |
| Display Type | FSTN - Film Super-Twisted Nematic |
| Display Mode | Transflective |
| Character Size | 1.85mm H x 3.15mm W |
| Outline L x W x H | 65.00mm x 28.40mm x 9.00mm |
| Viewing Area | 46.00mm L x 18.40mm W |
| Backlight | LED - White |
| Voltage - Supply | 5V |
| Dot Size | 0.33mm W x 0.35mm H |
| Interface | Parallel |
| Controller Type | S6A0069 |
| Operating Temperature | -20°C ~ 70°C |
| Text Color | Black |
| Background Color | Gray |
Submit your RFQ for AMC2004HR-B-W6WFDW and get a quote within 24 hours.
