Orient Display - duplicate use 3444
24X2 CHARACTER STN GRAY

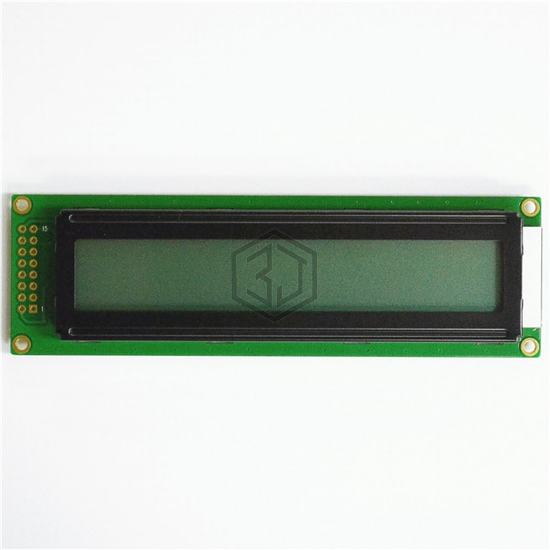

AMC2402AR-B-G6WFDW is a Display Modules - LCD, OLED Character and Numeric manufactured by Orient Display - duplicate use 3444. 24X2 CHARACTER STN GRAY. Key specifications: operating temperature -20°C ~ 70°C, voltage - supply 5V, interface Parallel, display type STN - Super-Twisted Nematic.
In Stock: 99
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Characters | 48 |
| Display Format | 24 x 2 |
| Character Format | 5 x 8 Dots |
| Display Type | STN - Super-Twisted Nematic |
| Display Mode | Transflective |
| Character Size | 3.20mm H x 5.55mm W |
| Outline L x W x H | 118.00mm x 36.00mm x 13.60mm |
| Viewing Area | 93.50mm L x 16.00mm W |
| Backlight | LED - White |
| Voltage - Supply | 5V |
| Dot Size | 0.60mm W x 0.65mm H |
| Interface | Parallel |
| Controller Type | ST7066Uv22 |
| Operating Temperature | -20°C ~ 70°C |
| Text Color | Blue |
| Background Color | - |
