Orient Display - duplicate use 3444
20X4 CHARACTER STN YELLOW GREEN

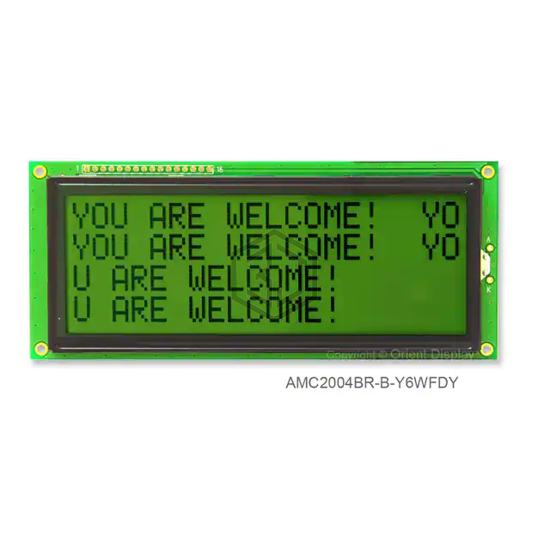

AMC2004BR-B-Y6WFDY is a Display Modules - LCD, OLED Character and Numeric manufactured by Orient Display - duplicate use 3444. 20X4 CHARACTER STN YELLOW GREEN. Key specifications: operating temperature -20°C ~ 70°C, voltage - supply 5V, interface Parallel, display type STN - Super-Twisted Nematic, TN - Twisted Nematic.
In Stock: 197
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Characters | 80 |
| Display Format | 20 x 4 |
| Character Format | 5 x 8 Dots |
| Display Type | STN - Super-Twisted Nematic, TN - Twisted Nematic |
| Display Mode | Transflective |
| Character Size | 9.22mm H x 4.84mm W |
| Outline L x W x H | 146.00mm x 62.50mm x 13.00mm |
| Viewing Area | 123.50mm L x 43.00mm W |
| Backlight | LED - Yellow/Green |
| Voltage - Supply | 5V |
| Dot Size | 0.92mm W x 1.10mm H |
| Interface | Parallel |
| Controller Type | S6A0069 |
| Operating Temperature | -20°C ~ 70°C |
| Text Color | Black |
| Background Color | Yellow/Green |
Submit your RFQ for AMC2004BR-B-Y6WFDY and get a quote within 24 hours.
