Orient Display - duplicate use 3444

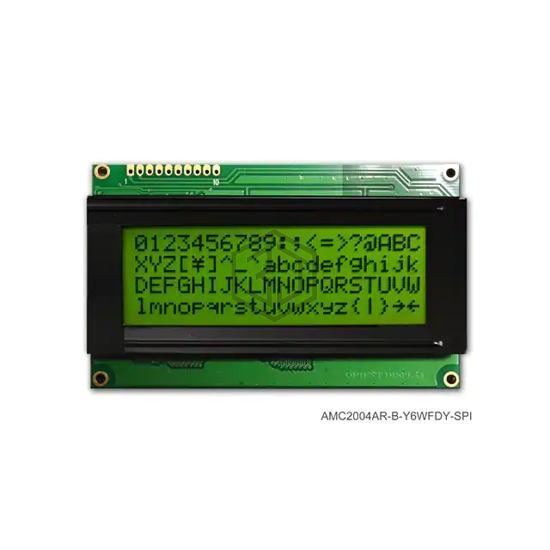

LCD COB CHAR 20X4 Y/G TRANSF SPI
AMC2004AR-B-Y6WFDY-SPI is a Display Modules - LCD, OLED Character and Numeric manufactured by Orient Display - duplicate use 3444. LCD COB CHAR 20X4 Y/G TRANSF SPI. Key specifications: operating temperature -20°C ~ 70°C, voltage - supply 4.5V ~ 5.5V, interface SPI, display type STN - Super-Twisted Nematic.
In Stock: 30
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Characters | 80 |
| Display Format | 20 x 4 |
| Character Format | 5 x 8 Dots |
| Display Type | STN - Super-Twisted Nematic |
| Display Mode | Transflective |
| Character Size | 4.75mm H x 2.95mm W |
| Outline L x W x H | 98.00mm x 60.00mm x 13.50mm |
| Viewing Area | 76.00mm L x 25.20mm W |
| Backlight | LED - Yellow/Green |
| Voltage - Supply | 4.5V ~ 5.5V |
| Dot Size | 0.55mm W x 0.55mm H |
| Interface | SPI |
| Controller Type | AC780S |
| Operating Temperature | -20°C ~ 70°C |
| Text Color | Dark Blue |
| Background Color | Yellow/Green |
