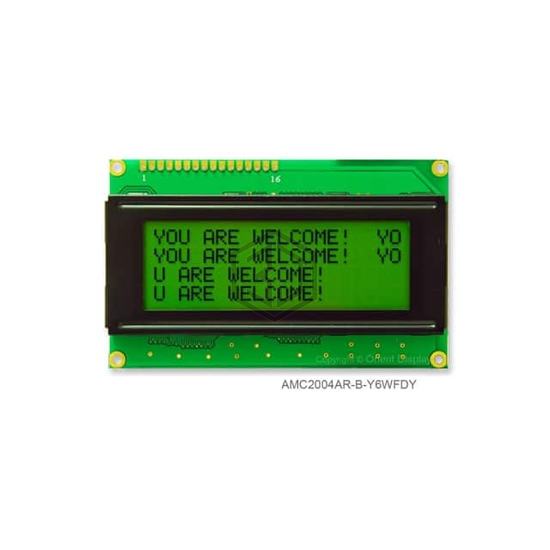

20X4 CHARACTER LCD STN YG
AMC2004AR-B-Y6WFDY is a Display Modules - LCD, OLED Character and Numeric manufactured by Orient Display - duplicate use 3444. 20X4 CHARACTER LCD STN YG. Key specifications: operating temperature -20°C ~ 70°C, voltage - supply 4.5V ~ 5.5V, interface Parallel, display type STN - Super-Twisted Nematic.
In Stock: 560
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Characters | 80 |
| Display Format | 20 x 4 |
| Character Format | 5 x 8 Dots |
| Display Type | STN - Super-Twisted Nematic |
| Display Mode | Transflective |
| Character Size | 4.75mm H x 2.95mm W |
| Outline L x W x H | 98.00mm x 60.00mm x 15.00mm |
| Viewing Area | 76.00mm L x 25.20mm W |
| Backlight | LED - Yellow/Green |
| Voltage - Supply | 4.5V ~ 5.5V |
| Dot Size | 0.55mm W x 0.55mm H |
| Interface | Parallel |
| Controller Type | ST7066Uv22 |
| Operating Temperature | -20°C ~ 70°C |
| Text Color | Dark |
| Background Color | Yellow/Green |
Submit your RFQ for AMC2004AR-B-Y6WFDY and get a quote within 24 hours.
