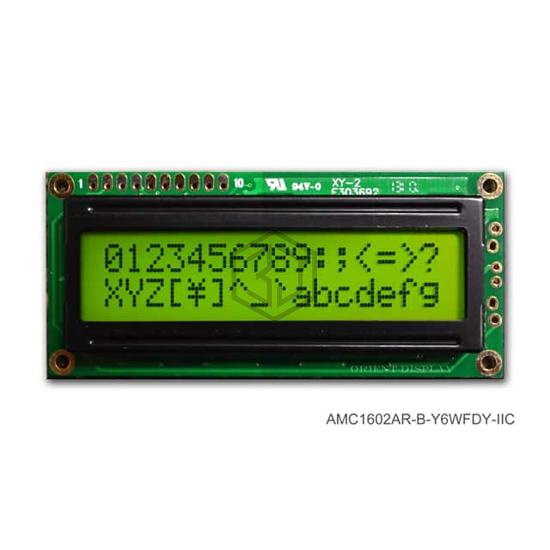

16X2 CHARACTER STN POS YG I2C
AMC1602AR-B-Y6WFDY-I2C is a Display Modules - LCD, OLED Character and Numeric manufactured by Orient Display - duplicate use 3444. 16X2 CHARACTER STN POS YG I2C. Key specifications: operating temperature -20°C ~ 70°C, voltage - supply 5V, interface I²C, display type STN - Super-Twisted Nematic.
In Stock: 250
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Characters | 32 |
| Display Format | 16 x 2 |
| Character Format | 5 x 8 Dots |
| Display Type | STN - Super-Twisted Nematic |
| Display Mode | Transflective |
| Character Size | 2.95mm H x 5.55mm W |
| Outline L x W x H | 80.00mm x 36.00mm x 14.00mm |
| Viewing Area | 64.50mm L x 15.50mm W |
| Backlight | LED - Yellow/Green |
| Voltage - Supply | 5V |
| Dot Size | 0.55mm W x 0.65mm H |
| Interface | I²C |
| Controller Type | AC780S |
| Operating Temperature | -20°C ~ 70°C |
| Text Color | Black |
| Background Color | Yellow/Green |
Submit your RFQ for AMC1602AR-B-Y6WFDY-I2C and get a quote within 24 hours.
