Orient Display - duplicate use 3444

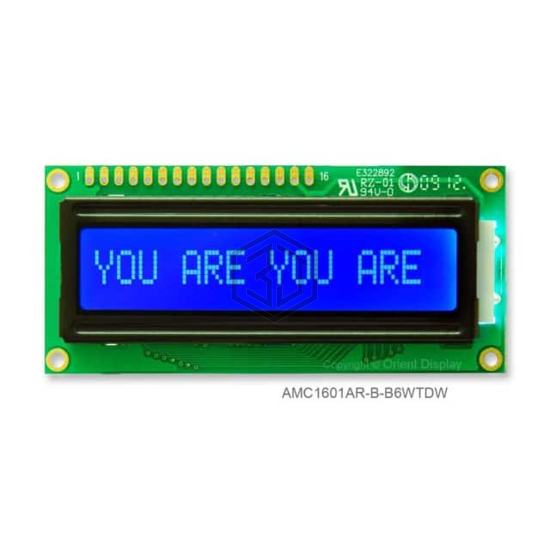

LCD COB CHAR 16X1 BLUE TRANSM
AMC1601AR-B-B6WTDW is a Display Modules - LCD, OLED Character and Numeric manufactured by Orient Display - duplicate use 3444. LCD COB CHAR 16X1 BLUE TRANSM. Key specifications: operating temperature -20°C ~ 70°C, voltage - supply 4.5V ~ 5.5V, interface Parallel, 8-Bit, display type STN - Super-Twisted Nematic.
In Stock: 197
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Characters | 16 |
| Display Format | 16 x 1 |
| Character Format | 5 x 8 Dots |
| Display Type | STN - Super-Twisted Nematic |
| Display Mode | Transmissive |
| Character Size | 6.56mm H x 3.07mm W |
| Outline L x W x H | 80.00mm x 36.00mm x 14.00mm |
| Viewing Area | 64.50mm L x 13.80mm W |
| Backlight | LED - White |
| Voltage - Supply | 4.5V ~ 5.5V |
| Dot Size | 0.55mm W x 0.75mm H |
| Interface | Parallel, 8-Bit |
| Controller Type | S6A0069 |
| Operating Temperature | -20°C ~ 70°C |
| Text Color | White |
| Background Color | Blue |
Submit your RFQ for AMC1601AR-B-B6WTDW and get a quote within 24 hours.
