Orient Display - duplicate use 3444
LCD COB CHAR 8X2 Y/G TRANSF

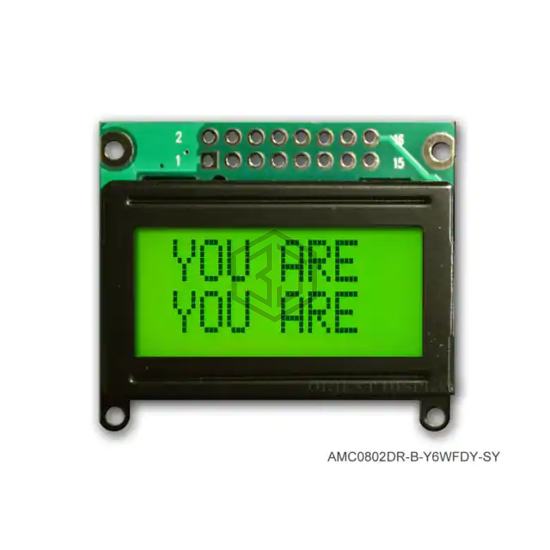

AMC0802DR-B-Y6WFDY is a Display Modules - LCD, OLED Character and Numeric manufactured by Orient Display - duplicate use 3444. LCD COB CHAR 8X2 Y/G TRANSF. Key specifications: operating temperature -20°C ~ 70°C, voltage - supply 4.5V ~ 5.5V, interface Parallel, 8-Bit, display type STN - Super-Twisted Nematic.
In Stock: 200
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Characters | 16 |
| Display Format | 8 x 2 |
| Character Format | 5 x 8 Dots |
| Display Type | STN - Super-Twisted Nematic |
| Display Mode | Transflective |
| Character Size | 4.75mm H x 2.95mm W |
| Outline L x W x H | 40.00mm x 35.50mm x 14.00mm |
| Viewing Area | 30.40mm L x 13.90mm W |
| Backlight | LED - Yellow/Green |
| Voltage - Supply | 4.5V ~ 5.5V |
| Dot Size | 0.55mm W x 0.55mm H |
| Interface | Parallel, 8-Bit |
| Controller Type | S6A0069 |
| Operating Temperature | -20°C ~ 70°C |
| Text Color | Dark Blue |
| Background Color | Yellow/Green |
Submit your RFQ for AMC0802DR-B-Y6WFDY and get a quote within 24 hours.
