MOD IPM INVERTER 3PH DIPS3

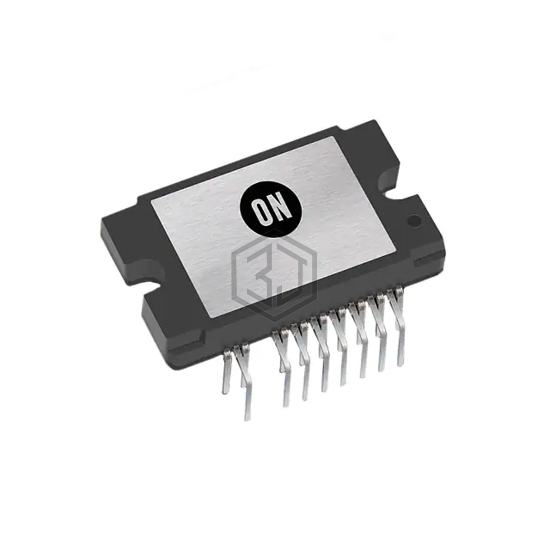

STK5Q4U362J-E is a PMIC - Full, Half-Bridge Drivers manufactured by onsemi. MOD IPM INVERTER 3PH DIPS3. Key specifications: mounting type Through Hole, operating temperature 150°C (TJ), voltage - supply 12.5V ~ 17.5V, package / case 38-DIP Module, 24 Leads.
In Stock: 32
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Configuration | Half Bridge (3) |
| Applications | AC Motors |
| Interface | Logic |
| Load Type | Inductive |
| Technology | IGBT |
| Rds On (Typ) | - |
| Current - Output / Channel | 10A |
| Current - Peak Output | 20A |
| Voltage - Supply | 12.5V ~ 17.5V |
| Voltage - Load | 400V (Max) |
| Operating Temperature | 150°C (TJ) |
| Features | Status Flag |
| Fault Protection | Current Limiting, UVLO |
| Mounting Type | Through Hole |
| Package / Case | 38-DIP Module, 24 Leads |
| Supplier Device Package | - |
STK5Q4U362J-E is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| STK621-728-E | Fairchild Semiconductor | MOTION CONTROL ELECTRONIC | 100% | View |
| STK625-728-E | onsemi | IC MOTOR DRIVER | 100% | View |
| SCM1241M | Sanken | IC BRIDGE DRIVER PAR SCM33 | 99% | View |
| STK534U362C-E | onsemi | IC MOTOR DRIVER 29SIP | 98% | View |
| STK554U362A-E | onsemi | IC BRIDGE DRIVER PAR 29SIP | 98% | View |
| SIM6827M | Sanken | IC BRIDGE DRIVER PAR 40DIP | 64% | View |
Submit your RFQ for STK5Q4U362J-E and get a quote within 24 hours.
