2-IN-1 PFC AND INVERTER IPM

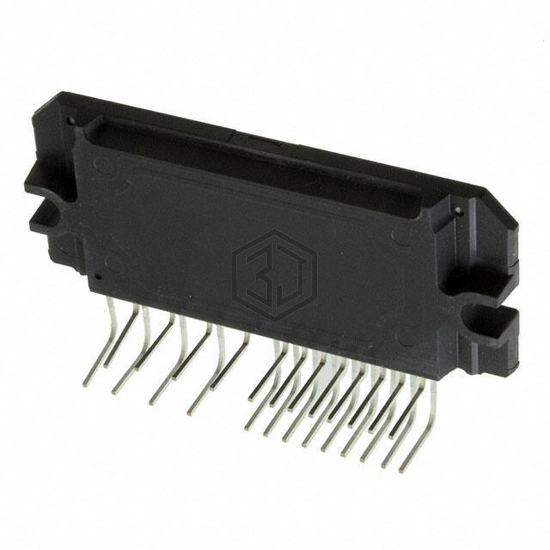

STK57FU394AG-E is a PMIC - Full, Half-Bridge Drivers manufactured by onsemi. 2-IN-1 PFC AND INVERTER IPM. Key specifications: mounting type Through Hole, operating temperature 150°C (TJ), voltage - supply 12.5V ~ 17.5V, package / case 35-SSIP, 25 Leads.
In Stock: 4,310
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Configuration | Half Bridge (3) |
| Applications | AC Motors, DC Motors, General Purpose |
| Interface | Logic |
| Load Type | Inductive |
| Technology | IGBT |
| Rds On (Typ) | - |
| Current - Output / Channel | 15A |
| Current - Peak Output | 30A |
| Voltage - Supply | 12.5V ~ 17.5V |
| Voltage - Load | 400V (Max) |
| Operating Temperature | 150°C (TJ) |
| Features | Bootstrap Circuit |
| Fault Protection | Current Limiting, UVLO |
| Mounting Type | Through Hole |
| Package / Case | 35-SSIP, 25 Leads |
| Supplier Device Package | 35-SIP/SIP2A-3 |
STK57FU394AG-E is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| STK621-738-E | onsemi | IC MOTOR DRIVER | 100% | View |
| STK57FU394A-E | onsemi | MOD IPM PFC INVERTER | 100% | View |
| STK621-033N-E | onsemi | IC MOTOR DRIVER | 100% | View |
| STK621-150A-E | onsemi | IC MOTOR DRIVER | 100% | View |
| STK621-150B-E | onsemi | IC MOTOR DRIVER | 100% | View |
| STK531U394A-E | onsemi | IC MOTOR DRIVER | 98% | View |
Submit your RFQ for STK57FU394AG-E and get a quote within 24 hours.
