IC BRIDGE DRIVER PAR 29SIP

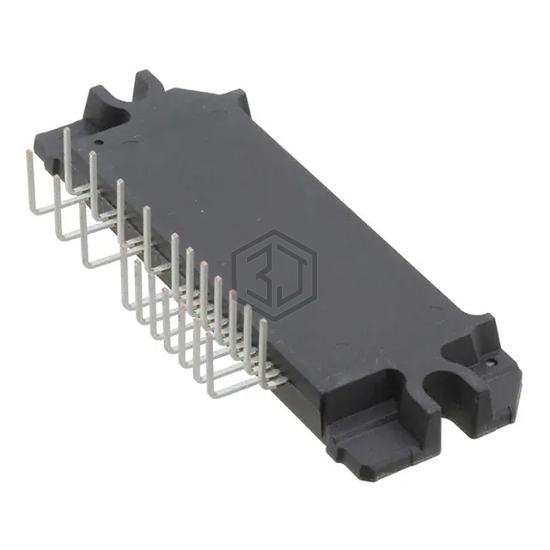

STK554U362C-E is a PMIC - Full, Half-Bridge Drivers manufactured by onsemi. IC BRIDGE DRIVER PAR 29SIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 150°C (TJ), voltage - supply 12.5V ~ 17.5V, package / case 29-SSIP Module, 21 Leads, Formed Leads.
In Stock: 9,618
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Configuration | Half Bridge (3) |
| Applications | AC Motors |
| Interface | Logic |
| Load Type | Inductive |
| Technology | IGBT |
| Rds On (Typ) | - |
| Current - Output / Channel | 10A |
| Current - Peak Output | 20A |
| Voltage - Supply | 12.5V ~ 17.5V |
| Voltage - Load | 450V (Max) |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Features | Bootstrap Circuit, Status Flag |
| Fault Protection | Current Limiting, Shoot-Through, UVLO |
| Mounting Type | Through Hole |
| Package / Case | 29-SSIP Module, 21 Leads, Formed Leads |
| Supplier Device Package | 29-SIP |
STK554U362C-E is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| STK534U363C-E | onsemi | 3 PHASE INVERTER IPM | 100% | View |
| STK544UC62K-E | onsemi | IC BRIDGE DRIVER PAR 23SIP | 100% | View |
| STK551U362A-E | onsemi | IC BRIDGE DRIVER PAR 29SIP | 100% | View |
| STK541UC60C-E | onsemi | MODULE IPM INVERTER 3PH 23SIP | 100% | View |
| STK531U369A-E | onsemi | MODULE IPM INVERTER 3PH 29SIP | 100% | View |
| STK554U362A-E | onsemi | IC BRIDGE DRIVER PAR 29SIP | 100% | View |
