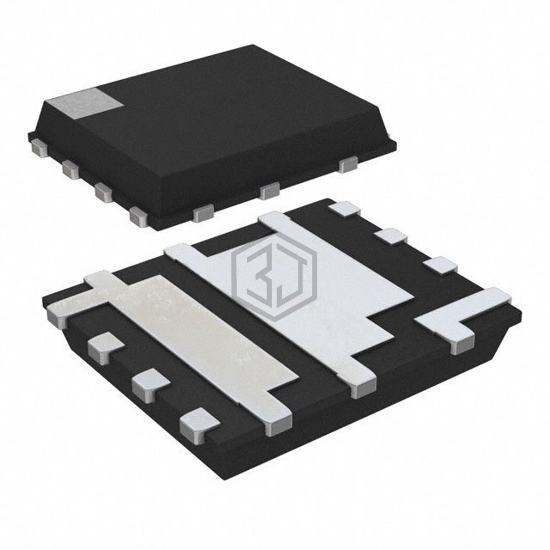

MOSFET 2N-CH 30V 11.3/18.1A 8DFN
NTMFD4C86NT3G is a Transistors - FETs, MOSFETs - Arrays manufactured by onsemi. MOSFET 2N-CH 30V 11.3/18.1A 8DFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerTDFN, power - max 1.1W.
In Stock: 795,000
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| FET Type | 2 N-Channel (Dual) Asymmetrical |
| FET Feature | Standard |
| Drain to Source Voltage (Vdss) | 30V |
| Current - Continuous Drain (Id) @ 25°C | 11.3A, 18.1A |
| Rds On (Max) @ Id, Vgs | 5.4mOhm @ 30A, 10V |
| Vgs(th) (Max) @ Id | 2.2V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 22.2nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 1153pF @ 15V |
| Power - Max | 1.1W |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-PowerTDFN |
| Supplier Device Package | 8-DFN (5x6) |
Submit your RFQ for NTMFD4C86NT3G and get a quote within 24 hours.
