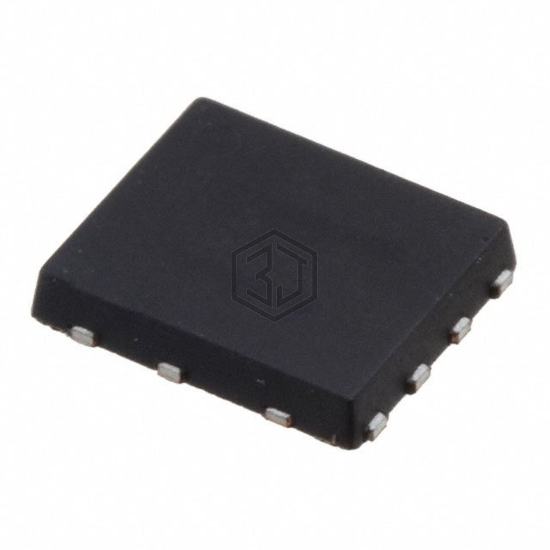

MOSFET 2N-CH 30V SO8FL
NTMFD4C20NT1G is a Transistors - FETs, MOSFETs - Arrays manufactured by onsemi. MOSFET 2N-CH 30V SO8FL. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerTDFN, power - max 1.09W, 1.15W.
In Stock: 1,480
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | 2 N-Channel (Dual) |
| FET Feature | Standard |
| Drain to Source Voltage (Vdss) | 30V |
| Current - Continuous Drain (Id) @ 25°C | 9.1A, 13.7A |
| Rds On (Max) @ Id, Vgs | 7.3mOhm @ 10A, 10V |
| Vgs(th) (Max) @ Id | 2.1V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 9.3nC @ 4.5V |
| Input Capacitance (Ciss) (Max) @ Vds | 970pF @ 15V |
| Power - Max | 1.09W, 1.15W |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-PowerTDFN |
| Supplier Device Package | 8-DFN (5x6) Dual Flag (SO8FL-Dual-Asymmetrical) |
Submit your RFQ for NTMFD4C20NT1G and get a quote within 24 hours.
