MOSFET 2N-CH 30V 8DFN

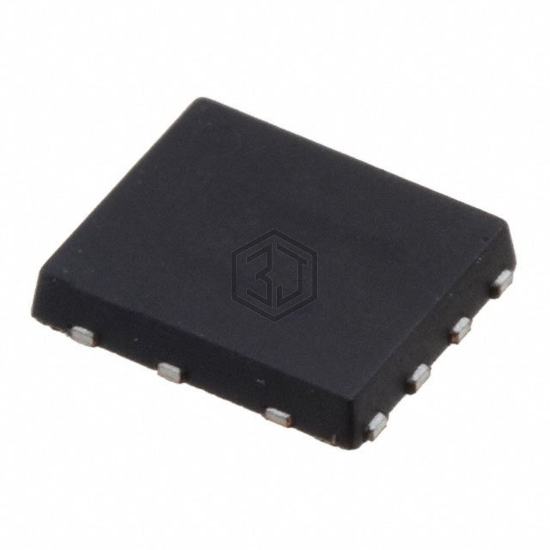

NTMFD4901NFT1G is a Transistors - FETs, MOSFETs - Arrays manufactured by onsemi. MOSFET 2N-CH 30V 8DFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerTDFN, power - max 1.1W, 1.2W.
In Stock: 4
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| FET Type | 2 N-Channel (Dual), Schottky |
| FET Feature | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 30V |
| Current - Continuous Drain (Id) @ 25°C | 10.3A, 17.9A |
| Rds On (Max) @ Id, Vgs | 6.5mOhm @ 10A, 10V |
| Vgs(th) (Max) @ Id | 2.2V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 9.7nC @ 4.5V |
| Input Capacitance (Ciss) (Max) @ Vds | 1150pF @ 15V |
| Power - Max | 1.1W, 1.2W |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-PowerTDFN |
| Supplier Device Package | 8-DFN (5x6) Dual Flag (SO8FL-Dual-Asymmetrical) |
Submit your RFQ for NTMFD4901NFT1G and get a quote within 24 hours.
