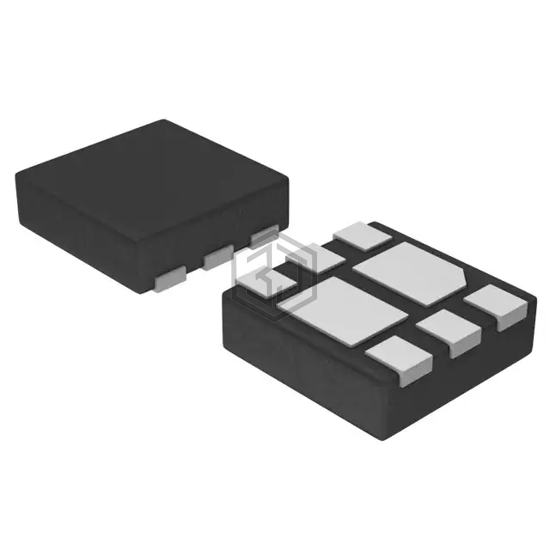

MOSFET 2P-CH 20V 1.1A 6UDFN
NTLUD3191PZTAG is a Transistors - FETs, MOSFETs - Arrays manufactured by onsemi. MOSFET 2P-CH 20V 1.1A 6UDFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-UFDFN Exposed Pad, power - max 500mW.
In Stock: 99,480
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| FET Type | 2 P-Channel (Dual) |
| FET Feature | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 20V |
| Current - Continuous Drain (Id) @ 25°C | 1.1A |
| Rds On (Max) @ Id, Vgs | 250mOhm @ 1.5A, 4.5V |
| Vgs(th) (Max) @ Id | 1V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 3.5nC @ 4.5V |
| Input Capacitance (Ciss) (Max) @ Vds | 160pF @ 10V |
| Power - Max | 500mW |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 6-UFDFN Exposed Pad |
| Supplier Device Package | 6-UDFN (1.6x1.6) |
Submit your RFQ for NTLUD3191PZTAG and get a quote within 24 hours.
