MOSFET 2N-CH 20V 6A 8MICRO

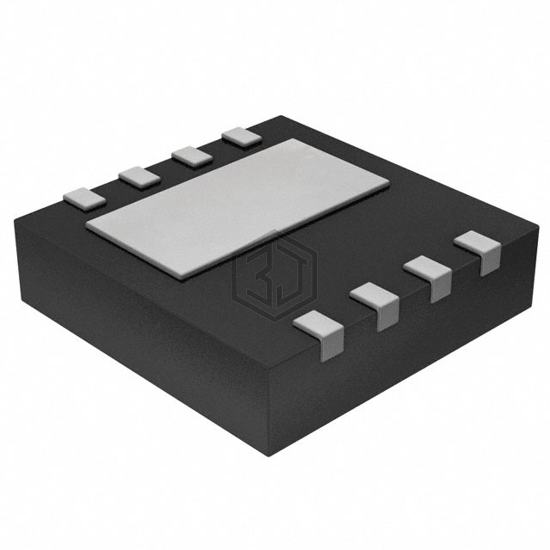

NTLTD7900ZR2G is a Transistors - FETs, MOSFETs - Arrays manufactured by onsemi. MOSFET 2N-CH 20V 6A 8MICRO. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-VDFN Exposed Pad, power - max 1.5W.
In Stock: 297,816
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| FET Type | 2 N-Channel (Dual) |
| FET Feature | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 20V |
| Current - Continuous Drain (Id) @ 25°C | 6A |
| Rds On (Max) @ Id, Vgs | 26mOhm @ 6.5A, 4.5V |
| Vgs(th) (Max) @ Id | 1V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 18nC @ 4.5V |
| Input Capacitance (Ciss) (Max) @ Vds | 15pF @ 16V |
| Power - Max | 1.5W |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-VDFN Exposed Pad |
| Supplier Device Package | 8-DFN (3x3), (MICRO8 LEADLESS) |
Submit your RFQ for NTLTD7900ZR2G and get a quote within 24 hours.
