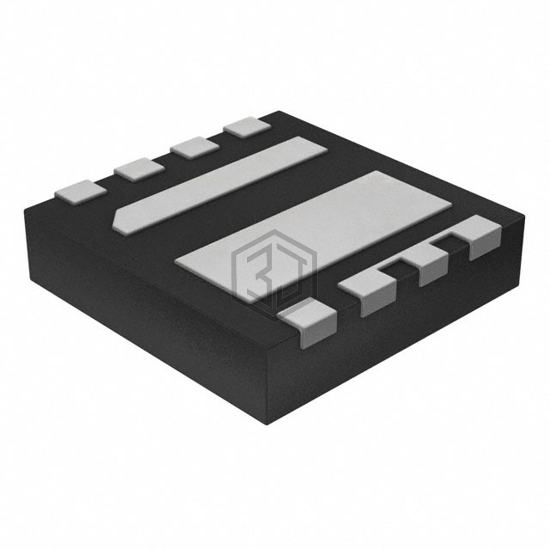

MOSFET 2N-CH 30V 5.5A/6.3A 8WDFN
NTLLD4951NFTWG is a Transistors - FETs, MOSFETs - Arrays manufactured by onsemi. MOSFET 2N-CH 30V 5.5A/6.3A 8WDFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-WDFN Exposed Pad, power - max 800mW, 810mW.
In Stock: 3,000
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| FET Type | 2 N-Channel (Dual) Asymmetrical |
| FET Feature | Standard |
| Drain to Source Voltage (Vdss) | 30V |
| Current - Continuous Drain (Id) @ 25°C | 5.5A, 6.3A |
| Rds On (Max) @ Id, Vgs | 17.4mOhm @ 9A, 10V |
| Vgs(th) (Max) @ Id | 2.2V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 12nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 605pF @ 15V |
| Power - Max | 800mW, 810mW |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-WDFN Exposed Pad |
| Supplier Device Package | 8-WDFN (3x3) |
Submit your RFQ for NTLLD4951NFTWG and get a quote within 24 hours.
