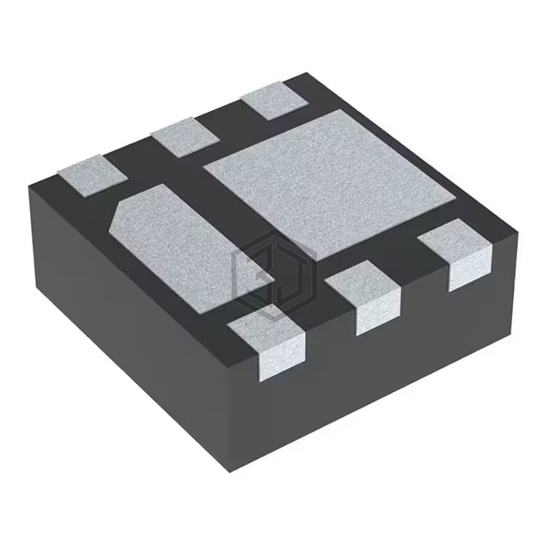

MOSFET N/P-CH 8V 2.5A 6-WDFN
NTLJD2105LTBG is a Transistors - FETs, MOSFETs - Arrays manufactured by onsemi. MOSFET N/P-CH 8V 2.5A 6-WDFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-WDFN Exposed Pad, power - max 520mW.
In Stock: 44,912
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| FET Type | N and P-Channel |
| FET Feature | Standard |
| Drain to Source Voltage (Vdss) | 8V |
| Current - Continuous Drain (Id) @ 25°C | 2.5A |
| Rds On (Max) @ Id, Vgs | 50mOhm @ 4A, 4.5V |
| Vgs(th) (Max) @ Id | 1V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | - |
| Input Capacitance (Ciss) (Max) @ Vds | - |
| Power - Max | 520mW |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 6-WDFN Exposed Pad |
| Supplier Device Package | 6-WDFN (2x2) |
Submit your RFQ for NTLJD2105LTBG and get a quote within 24 hours.
