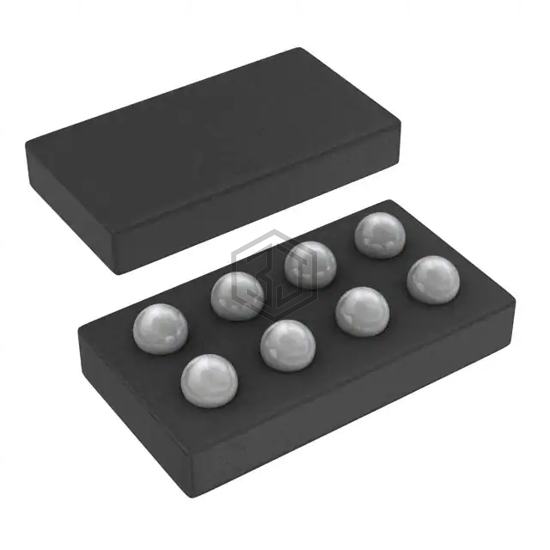

IC MUX DUAL BILATERAL 8WLCSP
NLX2G66FCTAG is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by onsemi. IC MUX DUAL BILATERAL 8WLCSP. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C (TA), package / case 8-XFBGA, WLCSP, number of circuits 2.
In Stock: 8,024
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SPST - NO |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 5.5Ohm |
| Channel-to-Channel Matching (ΔRon) | 4.5Ohm |
| Voltage - Supply, Single (V+) | 1.65V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 4.9ns, 6ns |
| -3db Bandwidth | 270MHz |
| Charge Injection | - |
| Channel Capacitance (CS(off), CD(off)) | 6pF |
| Current - Leakage (IS(off)) (Max) | 100nA |
| Crosstalk | -100dB @ 1MHz |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 8-XFBGA, WLCSP |
| Supplier Device Package | 8-WLCSP (1.89x0.89) |
NLX2G66FCTAG is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| NLX2G66DMUTAG | onsemi | IC MUX DUAL BILATERAL 8UDFN | 100% | View |
| NLX2G66DMUTCG | onsemi | IC MUX DUAL BILATERAL 8UDFN | 100% | View |
| NLASB3157DFT2G | onsemi | IC SWITCH SPDT SC88 | 91% | View |
| NLASB3157DFT2 | onsemi | IC SWITCH SPDT SC88 | 91% | View |
| NLASB3157MTR2G | onsemi | IC SWITCH SPDT 6WDFN | 91% | View |
| NLAS3158MNR2G | onsemi | IC SWITCH DUAL SPDT 12DFN | 89% | View |
Submit your RFQ for NLX2G66FCTAG and get a quote within 24 hours.
