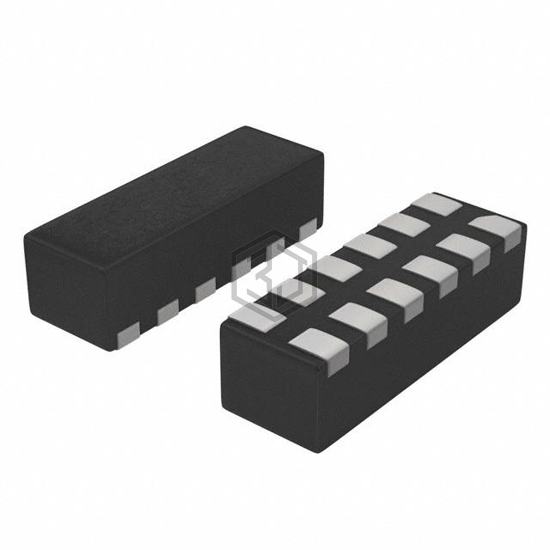

IC SWITCH DUAL SPDT 12DFN
NLAS3158MNR2G is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by onsemi. IC SWITCH DUAL SPDT 12DFN. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C (TA), package / case 12-WFDFN Exposed Pad, number of circuits 2.
In Stock: 3,336
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 13Ohm |
| Channel-to-Channel Matching (ΔRon) | 150mOhm |
| Voltage - Supply, Single (V+) | 1.65V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 5.2ns, 3.5ns |
| -3db Bandwidth | 250MHz |
| Charge Injection | 7pC |
| Channel Capacitance (CS(off), CD(off)) | 2.3pF |
| Current - Leakage (IS(off)) (Max) | 100nA |
| Crosstalk | -54dB @ 10MHz |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 12-WFDFN Exposed Pad |
| Supplier Device Package | 12-DFN (3x1) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| NLX2G66DMUTAG | onsemi | IC MUX DUAL BILATERAL 8UDFN | 89% | View |
| NLX2G66DMUTCG | onsemi | IC MUX DUAL BILATERAL 8UDFN | 89% | View |
| NLX2G66FCTAG | onsemi | IC MUX DUAL BILATERAL 8WLCSP | 89% | View |
| LNLASB3157DFT2G | onsemi | IC SWITCH SPDT SOT363 | 87% | View |
| NLASB3157DFT2G | onsemi | IC SWITCH SPDT SC88 | 86% | View |
| NLASB3157MTR2G | onsemi | IC SWITCH SPDT 6WDFN | 86% | View |
Submit your RFQ for NLAS3158MNR2G and get a quote within 24 hours.
