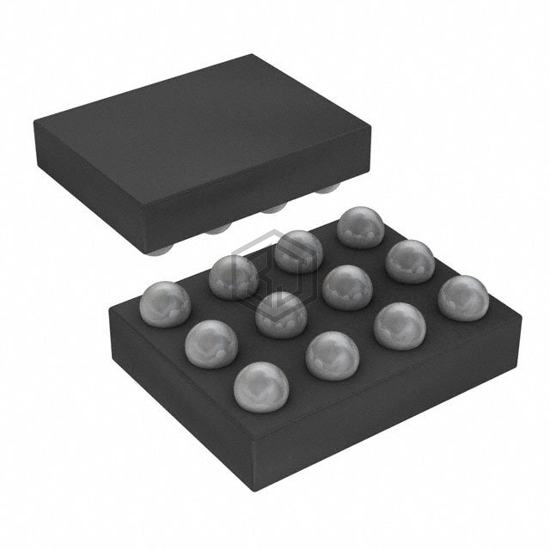

IC ANALOG SWITCH SPDT 12WLCSP
NLAS54404FCTAG is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by onsemi. IC ANALOG SWITCH SPDT 12WLCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 12-UFBGA, WLCSP, number of circuits 2.
In Stock: 203,620
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 2.1Ohm (Typ) |
| Channel-to-Channel Matching (ΔRon) | 4.2mOhm |
| Voltage - Supply, Single (V+) | 3V ~ 3.6V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 20.7µs, 100ns |
| -3db Bandwidth | 250MHz |
| Charge Injection | - |
| Channel Capacitance (CS(off), CD(off)) | 6.8pF |
| Current - Leakage (IS(off)) (Max) | - |
| Crosstalk | -90dB @ 20kHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 12-UFBGA, WLCSP |
| Supplier Device Package | 12-WLCSP (1.6x1.2) |
NLAS54404FCTAG is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| TMUX4157NDCKR | Texas Instruments | 2- LOW RON, -12-V, 2:1 (SPDT) GE | 76% | View |
| DGQ2788AEN-T1-GE4 | Vishay Siliconix | IC SWITCH QD SPDT MINIQFN-16 | 72% | View |
| DG2788ADN-T1-GE4 | Vishay Siliconix | IC ANLG SW 2CH DPDT 16MINI QFN | 72% | View |
| DG2788ADN-T1-E4 | Vishay Siliconix | IC SWITCH DUAL DPDT MINIQFN16 | 72% | View |
| MAX14777GTP+T | Analog Devices Inc./Maxim Integrated | IC SWITCH QUAD SPST 20TQFN | 67% | View |
| MAX14777GTP+ | Analog Devices Inc./Maxim Integrated | IC SWITCH QUAD SPST 20TQFN | 67% | View |
Submit your RFQ for NLAS54404FCTAG and get a quote within 24 hours.
