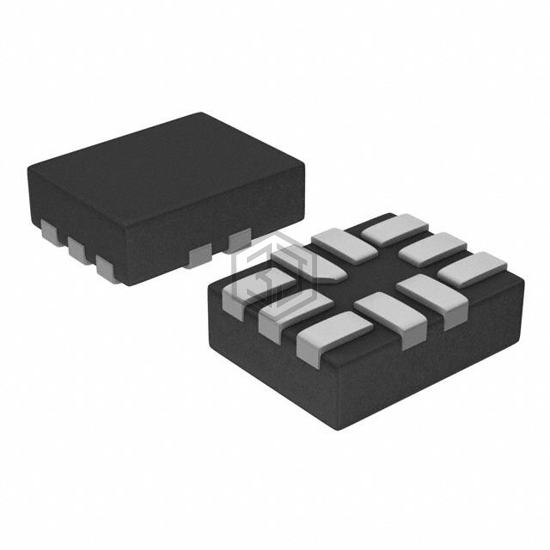

IC SWITCH DUAL SPDT LV 10UQFN
NLAS5223CLMUTAG is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by onsemi. IC SWITCH DUAL SPDT LV 10UQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 10-UFQFN, number of circuits 2.
In Stock: 7,807
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 350mOhm |
| Channel-to-Channel Matching (ΔRon) | 50mOhm (Max) |
| Voltage - Supply, Single (V+) | 1.65V ~ 4.5V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 50ns, 30ns |
| -3db Bandwidth | 24MHz |
| Charge Injection | 38pC |
| Channel Capacitance (CS(off), CD(off)) | 60pF |
| Current - Leakage (IS(off)) (Max) | 5nA |
| Crosstalk | -70dB @ 100kHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 10-UFQFN |
| Supplier Device Package | 10-UQFN (1.4x1.8) |
NLAS5223CLMUTAG is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ISL84684IRZ-T | Intersil | SPDT ANALOG SWITCH, 2 FUNC, 2 CH | 96% | View |
| ISL84684IUZ | Intersil | SPDT ANALOG SWITCH, 2 FUNC, 2 CH | 96% | View |
| MAX4685EUB+ | Analog Devices Inc./Maxim Integrated | IC SWITCH DUAL SPDT 10UMAX | 75% | View |
| ADG884BCBZ-REEL | Analog Devices Inc. | IC SWITCH DUAL SPDT 10WLCSP | 73% | View |
| MAX4625EUT-T | Analog Devices Inc./Maxim Integrated | IC SWITCH SPDT SOT23-6 | 71% | View |
| ISL84053IBZ-T | Renesas Electronics America Inc | IC MUX/DEMUX TRIPLE 2X1 16SOIC | 53% | View |
Submit your RFQ for NLAS5223CLMUTAG and get a quote within 24 hours.
