SPDT ANALOG SWITCH, 2 FUNC, 2 CH

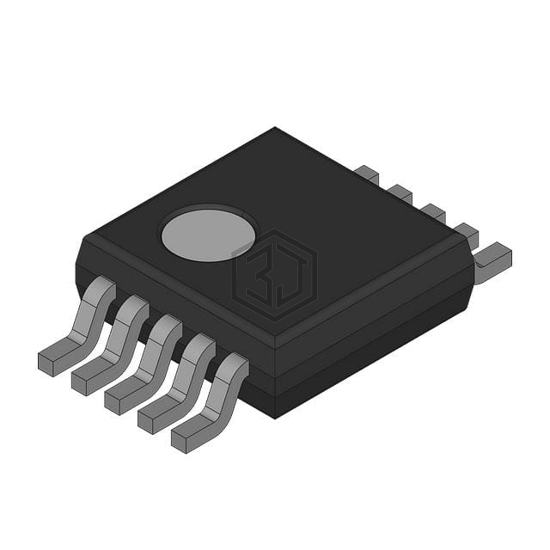

ISL84684IUZ is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Intersil. SPDT ANALOG SWITCH, 2 FUNC, 2 CH. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 10-TFSOP, 10-MSOP (0.118", 3.00mm Width), number of circuits 2.
In Stock: 3,739
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 500mOhm |
| Channel-to-Channel Matching (ΔRon) | 55mOhm |
| Voltage - Supply, Single (V+) | 1.65V ~ 3.6V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 50ns, 27ns |
| -3db Bandwidth | - |
| Charge Injection | 94pC |
| Channel Capacitance (CS(off), CD(off)) | 65pF |
| Current - Leakage (IS(off)) (Max) | 4nA |
| Crosstalk | -85dB @ 100kHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 10-MSOP |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| NLAS5223CLMUTAG | onsemi | IC SWITCH DUAL SPDT LV 10UQFN | 96% | View |
| MAX4627EUK-T | Analog Devices Inc./Maxim Integrated | IC SW ANLG 0.5 OHM SPST SOT23-5 | 82% | View |
| MAX4685EUB+ | Analog Devices Inc./Maxim Integrated | IC SWITCH DUAL SPDT 10UMAX | 79% | View |
| MAX4685EUB | Analog Devices Inc./Maxim Integrated | IC SWITCH DUAL SPDT 10UMAX | 79% | View |
| AOZ6232QI#A | Alpha & Omega Semiconductor Inc. | IC USB 2.0 SWITCH 10QFN | 69% | View |
| PI3A268CZMEX | Diodes Incorporated | IC SWITCH DUAL SPDT 10UQFN | 66% | View |
