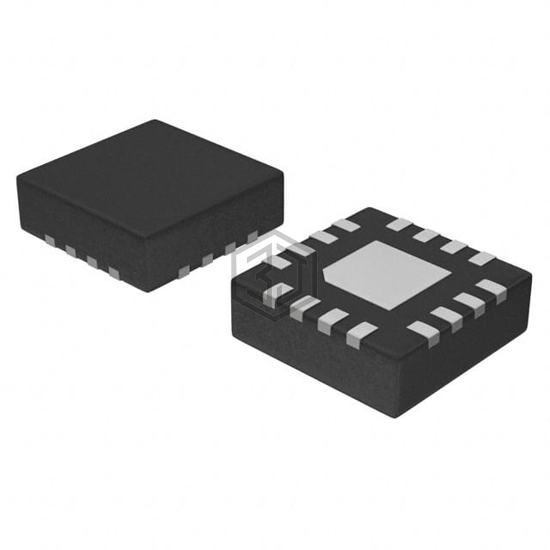

IC SWITCH DUAL DPDT 16QFN
NLAS3699BMN1R2G is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by onsemi. IC SWITCH DUAL DPDT 16QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 16-VFQFN Exposed Pad, number of circuits 2.
In Stock: 100,383
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | DPDT |
| Multiplexer/Demultiplexer Circuit | 2:2 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 550mOhm |
| Channel-to-Channel Matching (ΔRon) | 50mOhm |
| Voltage - Supply, Single (V+) | 1.65V ~ 4.5V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 50ns, 50ns |
| -3db Bandwidth | 20MHz |
| Charge Injection | 50pC |
| Channel Capacitance (CS(off), CD(off)) | 7pF |
| Current - Leakage (IS(off)) (Max) | 500nA |
| Crosstalk | -62dB @ 100kHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-VFQFN Exposed Pad |
| Supplier Device Package | 16-QFN (3x3) |
NLAS3699BMN1R2G is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| NLAS5223CMUTAG | onsemi | IC SWITCH DUAL SPDT LV 10UQFN | 68% | View |
| ISL84052IBZ | Renesas Electronics America Inc | IC MUX/DEMUX DUAL 4X1 16SOIC | 67% | View |
| ISL84052IAZ | Renesas Electronics America Inc | IC MUX/DEMUX DUAL 4X1 16QSOP | 67% | View |
| ISL84582IVZ-T | Renesas Electronics America Inc | IC MUX/DEMUX DUAL 4X1 16TSSOP | 67% | View |
| ISL43741IRZ | Renesas Electronics America Inc | IC MUX/DEMUX DUAL 4X1 20QFN | 63% | View |
| MAX4624EZT+T | Analog Devices Inc./Maxim Integrated | IC SWITCH SPDT SOT23-6 | 51% | View |
