Renesas Electronics America Inc

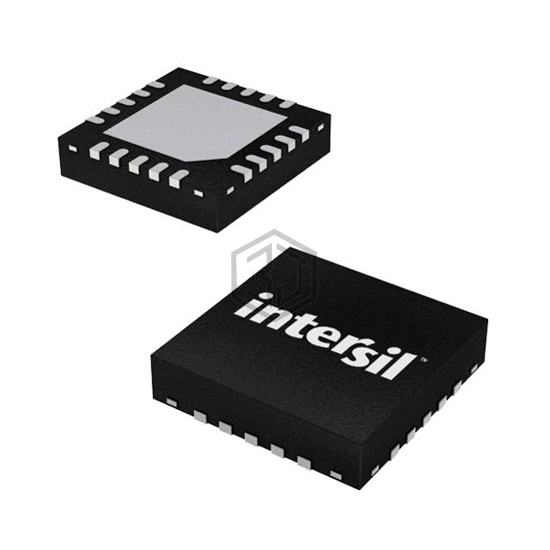

IC MUX/DEMUX DUAL 4X1 20QFN
ISL43741IRZ is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Renesas Electronics America Inc. IC MUX/DEMUX DUAL 4X1 20QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 20-VFQFN Exposed Pad, number of circuits 2.
In Stock: 5,661
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SP4T |
| Multiplexer/Demultiplexer Circuit | 4:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 60Ohm |
| Channel-to-Channel Matching (ΔRon) | 1.3Ohm |
| Voltage - Supply, Single (V+) | 2.7V ~ 12V |
| Voltage - Supply, Dual (V±) | ±2V ~ 6V |
| Switch Time (Ton, Toff) (Max) | 50ns, 35ns |
| -3db Bandwidth | - |
| Charge Injection | 0.3pC |
| Channel Capacitance (CS(off), CD(off)) | 3pF, 12pF |
| Current - Leakage (IS(off)) (Max) | 100pA |
| Crosstalk | -110dB @ 100kHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 20-VFQFN Exposed Pad |
| Supplier Device Package | 20-QFN (4x4) |
ISL43741IRZ is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ISL43681IRZ-T | Renesas Electronics America Inc | IC MUX/DEMUX 8X1 20QFN | 91% | View |
| ISL43681IR | Renesas Electronics America Inc | IC MUX/DEMUX 8X1 20QFN | 91% | View |
| DG612EEQ-T1-GE3 | Vishay Siliconix | IC SWITCH QUAD SPST 16TSSOP | 90% | View |
| DG611EEQ-T1-GE3 | Vishay Siliconix | IC ANALOG SWITCH 16TSSOP | 90% | View |
| ISL84052IBZ | Renesas Electronics America Inc | IC MUX/DEMUX DUAL 4X1 16SOIC | 76% | View |
| ISL84052IAZ | Renesas Electronics America Inc | IC MUX/DEMUX DUAL 4X1 16QSOP | 76% | View |
