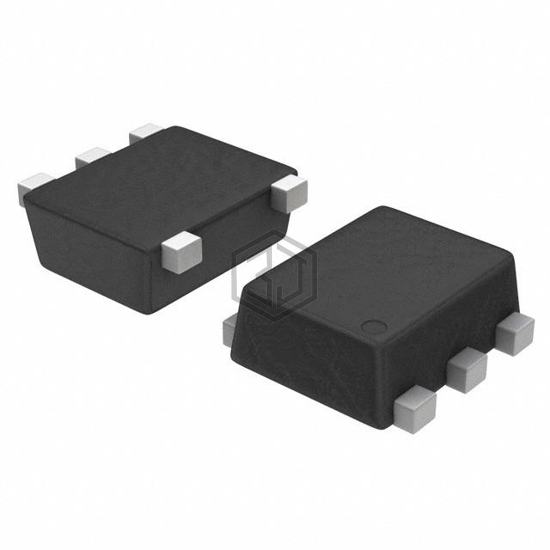

IC GATE NAND 1CH 2-INP SOT953
NL17SH00P5T5G is a Logic - Gates and Inverters manufactured by onsemi. IC GATE NAND 1CH 2-INP SOT953. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - supply 2V ~ 5.5V, package / case SOT-953.
In Stock: 360,000
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Logic Type | NAND Gate |
| Number of Circuits | 1 |
| Number of Inputs | 2 |
| Features | - |
| Voltage - Supply | 2V ~ 5.5V |
| Current - Quiescent (Max) | 1 µA |
| Current - Output High, Low | 8mA, 8mA |
| Logic Level - Low | 0.5V ~ 1.65V |
| Logic Level - High | 1.5V ~ 3.85V |
| Max Propagation Delay @ V, Max CL | 7.5ns @ 5V, 50pF |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | SOT-953 |
| Package / Case | SOT-953 |
NL17SH00P5T5G is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MC74VHC1G00DFT2 | onsemi | IC GATE NAND 1CH 2-INP SC-70 | 100% | View |
| M74VHC1GT00DTT1G | onsemi | IC GATE NAND 1CH 2-INP 5TSOP | 96% | View |
| NLVVHC1G132DFT2G | onsemi | IC GATE NAND 1CH 2IN SC88A | 92% | View |
| NLVVHC1G132DTT1G | onsemi | IC GATE NAND 1CH 2IN 5TSOP | 92% | View |
| MC74VHC1G132DFT1 | onsemi | IC GATE NAND 1CH 2-INP SC-70 | 92% | View |
| MC74VHC00DTR2G | onsemi | IC GATE NAND 4CH 2-INP 14TSSOP | 87% | View |
Submit your RFQ for NL17SH00P5T5G and get a quote within 24 hours.
