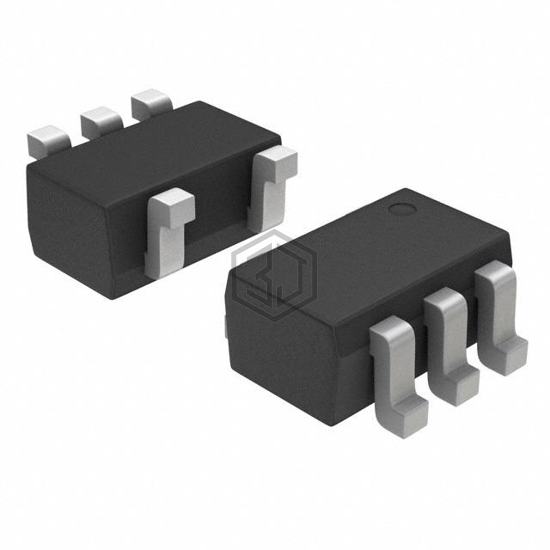

IC GATE NAND 1CH 2-INP SC-70
MC74VHC1G132DFT1 is a Logic - Gates and Inverters manufactured by onsemi. IC GATE NAND 1CH 2-INP SC-70. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - supply 2V ~ 5.5V, package / case 5-TSSOP, SC-70-5, SOT-353.
In Stock: 1,382,793
| Attribute | Value |
|---|---|
| Product Status | Active |
| Logic Type | NAND Gate |
| Number of Circuits | 1 |
| Number of Inputs | 2 |
| Features | Schmitt Trigger |
| Voltage - Supply | 2V ~ 5.5V |
| Current - Quiescent (Max) | 1 µA |
| Current - Output High, Low | 8mA, 8mA |
| Logic Level - Low | 0.65V ~ 1.45V |
| Logic Level - High | 2.25V ~ 3.7V |
| Max Propagation Delay @ V, Max CL | 9.7ns @ 5V, 50pF |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | SC-88A (SC-70-5/SOT-353) |
| Package / Case | 5-TSSOP, SC-70-5, SOT-353 |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| NLVVHC1G132DTT1G | onsemi | IC GATE NAND 1CH 2IN 5TSOP | 100% | View |
| M74VHC1GT00DTT1G | onsemi | IC GATE NAND 1CH 2-INP 5TSOP | 90% | View |
| NLVVHC1G132DFT1G | onsemi | IC GATE NAND 1CH 2IN SC88A | 89% | View |
| NLV74VHC00DTR2G | onsemi | IC GATE NAND 4CH 2-INP 14TSSOP | 79% | View |
| MC74VHC00DTR2G | onsemi | IC GATE NAND 4CH 2-INP 14TSSOP | 79% | View |
| NL17SG00DFT2G | onsemi | IC GATE NAND 1CH 2-INP SC88A | 78% | View |
Submit your RFQ for MC74VHC1G132DFT1 and get a quote within 24 hours.
